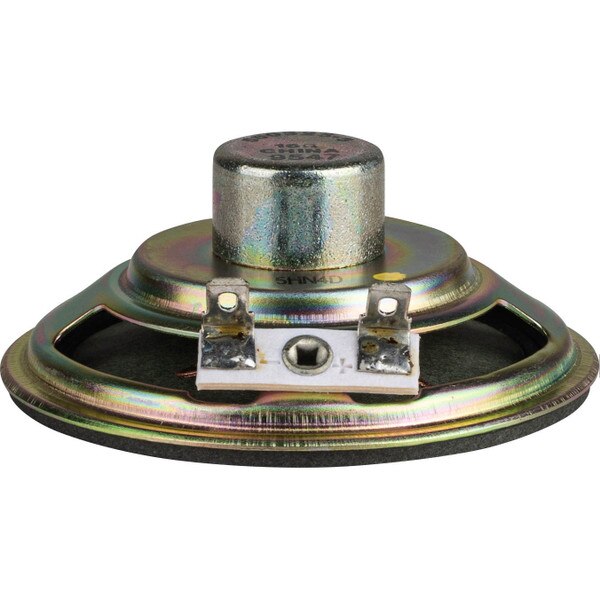

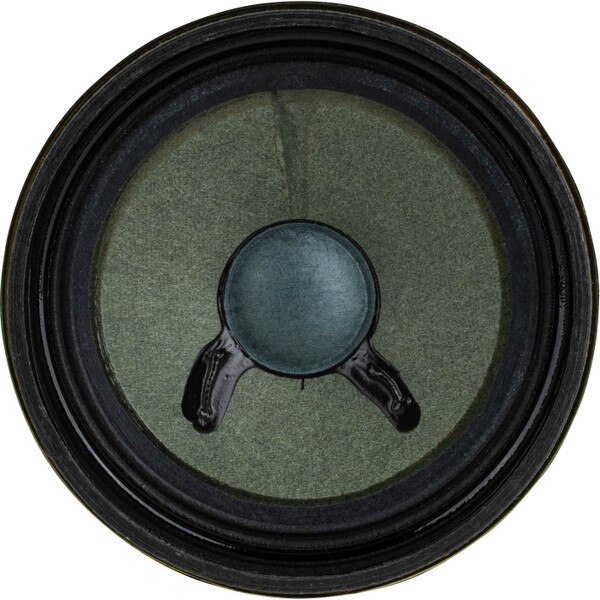

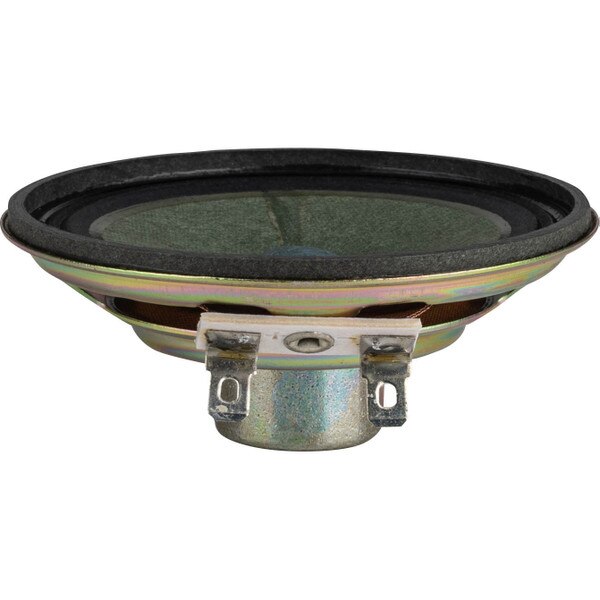

  • 3" 580325-5 3W Mini Green Paper Cone Speaker 16 Ohm Case Qty 100

3" 580325-5 3W Mini Green Paper Cone Speaker 16 Ohm Case Qty 100

Factory BuyoutsPart # 299-4177
Model: 580325-5

This 3" 580325-5 3W green paper cone full-range speaker is perfect for the hobbyist or tinkerer.

Key Features

  • Stylish and unique green paper cone
  • Coated paper surround for a non-resonant response
  • Neodymium motor for light weight efficiency
  • Less than 1" deep for shallow mounting applications
Your Price: $49.88
+ FREE SHIPPING
Bulk Pricing
165 In Stock
Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

3" 580325-5 3W Mini Green Paper Cone Speaker 16 Ohm Case Qty 100

With a unique mint-green colored paper cone, this 3" full-range speaker is a great choice for the electronic hobbyist or tinkerer. A coated paper surround, 1/2" voice coil on paper former and oversize spider make for a very smoot response from 180 - 10,000 Hz, while the neodymium magnet and extremely low moving mass help boost sensitivity. Its 16 ohm impedance means it can be used in multiples for arrays and with numerous wiring configurations. Case of 100 pcs.

Product Details

BrandFactory Buyouts
Model580325-5
Part Number299-4177
UPC848864075228
Weight20

Product Specifications

Nominal Diameter3"
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance16Ω
Frequency Response180 - 10,000Hz
Sensitivity83.73dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)184.9Hz
DC Resistance (Re)14.4Ω
Mechanical Q (Qms)3.696
Electromagnetic Q (Qes)5.942
Total Q (Qts)2.279
Compliance Equivalent Volume (Vas)0.051ft³
Diaphragm Mass Inc. Airload (Mms)0.8436g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)34.21cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Baffle Cutout Diameter2.75"
Depth1.25"
