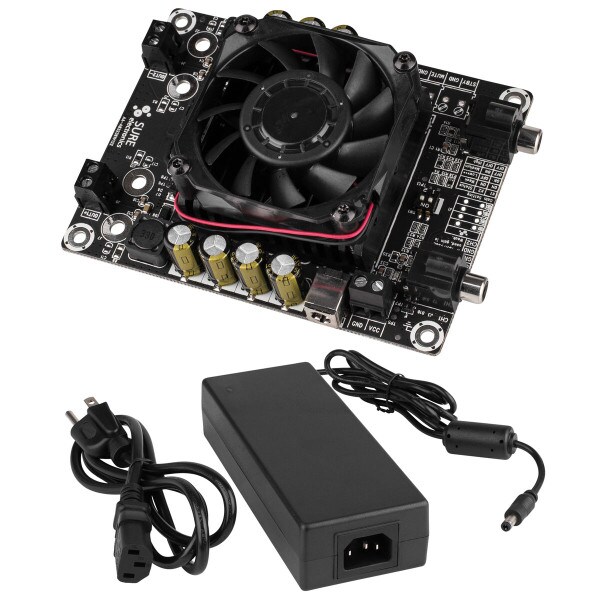

  • 2x100W TDA7498 Class D Amplifier Board with 36 VDC 4.4A Power Supply

2x100W TDA7498 Class D Amplifier Board with 36 VDC 4.4A Power Supply

Parts Express
Part #320-3030

2x100W TDA7498 Class D Amplifier Board with 36 VDC 4.4A Power Supply

Parts Express
Part #320-3030
DIY audiophiles rejoice! This 2 x 100W Class-D amplifier board is perfect for two-channel critical listening. It includes a 36 VDC 4.4A AC/DC adapter that plugs directly to the amp for up to 180W output power.
Key Features
  • Small footprint for space limited applications
  • Built-in cooling fan and over-temp protection circuit
  • Perfect amplifier and power supply for dedicated stereo use
  • Includes 36 VDC 4.4A power supply for maximum output power
Your Price: $69.98
Bulk Pricing

Out of Stock

Estimated back in stock 5/23/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

2x100W TDA7498 Class D Amplifier Board with 36 VDC 4.4A Power Supply

This amplifier board features a state-of-the-art, dual channel Class-D TDA7498 IC, which delivers up to 100 watts per channel. The small 3.6" wide by 4.8" long footprint allows this amplifier board to be used in many applications were size constraints limit the use of conventional amplifiers. Plug the included 36 VDC 4.4A power supply directly into the amp board, use the RCA jacks for a signal input, and wire a couple of speakers into the phoenix jacks and crank-it-up!

A low noise built-in fan kicks-in automatically to keep the amp chips cool along with a robust heatsink. Thermal, over/under voltage, and current protection circuits are also included to extend the longevity of the amplifier board. Three fixed gain settings are available to allow for volume control at the source.

Features:
• Class-D amplifier topology featuring TDA7498 amplifier IC
• Heatsink with attached fan
• Pre-drilled mounting holes
• Over-temperature, over/under voltage, and over current protection circuits
• Phoenix-type speaker terminals
• Line-level RCA input

Specifications:
• Power output (w/ 36 VDC power supply): 100W x 2 (6 ohms, THD 10%), 99W x 2 (6 ohms, THD 1%)
• Frequency response: 20 to 20,000 Hz
• Minimum impedance: 6 ohms
• Fixed gain settings: 24 dB, 25 dB, 26 dB
• Power input jack: 2.5 x 5.5 mm, center-positive
• Dimensions: 4.8" L x 3.6" W x 1.53" H
• Included power supply: 36 VDC 4.4A regulated output, 100~240 VAC 50/60 Hz 3.5A Max input

Product Details

BrandParts Express
Part Number320-3030
UPC848864056784
Weight2.47

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)26 - 50 Watts
