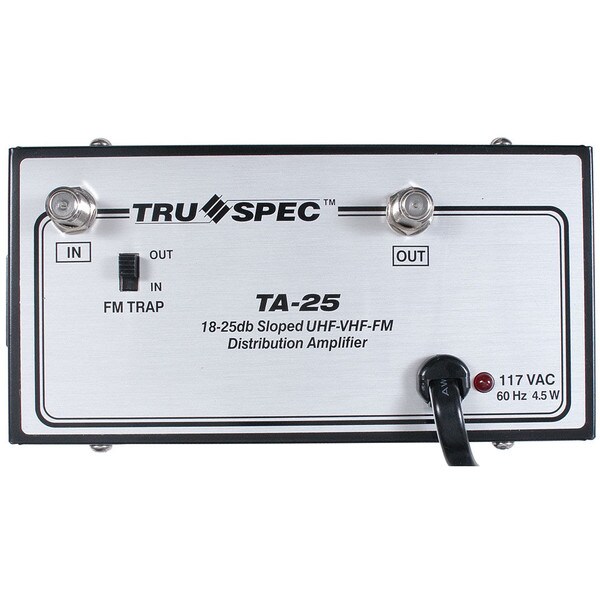

CLEARANCE 25 dB UHF-VHF-FM Distribution Amplifier TA-25

Pico MacomPart # 180-470
Model: TA-25
This high quality, wide-frequency 25 dB amplifier is perfect for DTV antennas, cable, and satellite systems. It ensures strong signal strength over long coaxial runs. It is easy to install anywhere between your antenna and the television and it features a 7 dB output that provides low distortion.
Get Notified When Available

We'll send you an email when 25 dB UHF-VHF-FM Distribution Amplifier TA-25 is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

25 dB UHF-VHF-FM Distribution Amplifier TA-25

This high quality, wide-frequency 25 dB amplifier is perfect for DTV antennas, cable, and satellite systems. It ensures strong signal strength over long coaxial runs. It is easy to install anywhere in-line between your antenna and the television and features a 7 dB sloped-output across the band that provides low harmonic distortion. It offers a heavy gauge shielded wall-mount case that is convenient and compact for quick and easy installation. F type inputs and outputs. Front panel LED power indicator. Switchable -20 dB FM trap (88-108 MHz) filters high level local FM radio stations reducing harmonic distortion.

Specifications: • Off-air channel frequency range: 54-806 MHz • Gain: 18-25 dB (54-890 MHz) • FM trap attenuation: -20 dB (95-108 MHz) • Flatness: 7 dB ±1 dB • Noise Figure: 5 dB / VHF; 7 dB / UHF • Dimensions: 7" wide, 3-1/8" deep, 2-1/8" high (including F-connectors) • 117 VAC,60 Hz 4.4W power source • 6 ft. power cord • UL Approved.

Product Details

BrandPico Macom
ModelTA-25
Part Number180-470
UPC844632060298
Unit of MeasureEach
Weight1.3

Specifications

Q&A

Reviews

Manuals & Resources
