Belden Snap-N-Seal ProSNS BNC RG-59 Security Compression Connector 25 Pack

Belden
Part #092-774

Belden Snap-N-Seal ProSNS BNC RG-59 Security Compression Connector 25 Pack

Belden
Part #092-774
Model: FSNS59BNCSL
When your time, money, and reputation depend on terminating coaxial cable quickly and reliably, count on Belden Snap-N-Seal ProSNS.
Key Features

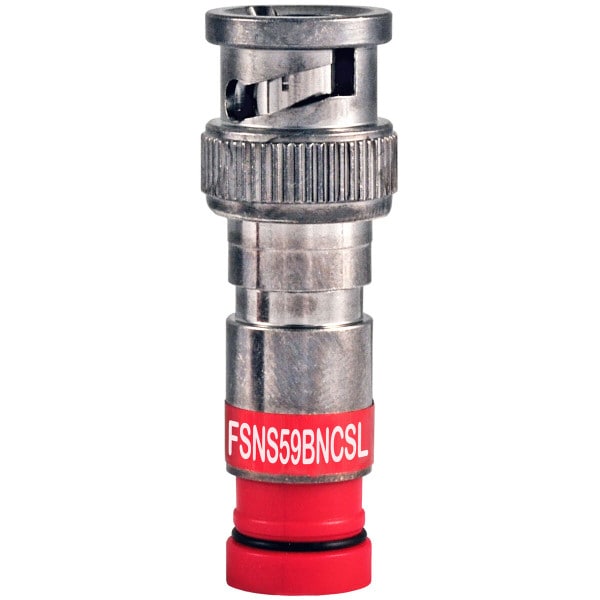

  • BNC male compression connector fits RG-59 security coaxial cable
  • Integrated O-ring locks out moisture
  • Floating-pin insertion guide for easier installation
Your Price: $129.98
+ FREE SHIPPING
MSRP: $173.99
Save $44.01 (25%)
Bulk Pricing
Quantity:Qty: 1-4 $129.98/ea
Quantity:Qty: 5+$124.98/ea
Ships next business day. Details

3In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Belden Snap-N-Seal ProSNS BNC RG-59 Security Compression Connector 25 Pack

This connector is an excellent choice for BNC male termination of RG-59 security cable. Security cable is usually constructed with a copper center conductor and braid with no inner foil, varying in diameter from different manufacturers and making installation difficult. The split ferrule in this connector collapses on the cable jacket when the sleeve is compressed, accommodating a wide number of RG-59 security cable variations.

When Belden acquired the manufacturers of both Snap-N-Seal and F-Conn, the company didn't rest on its laurels. Engineers took technology from both lines to create the best compression connectors in the world: Snap-N-Seal ProSNS.

By providing true 360° compression, these connectors are have superior RF shielding, rated at an effective -85 dB. All three connector styles, F-type, RCA, and BNC, feature 75 ohm impedance for low signal loss. The floating pin insertion guide, low insertion force, low compression force, and innovative sealing O-ring all help to create a connector that's easy to use, reliable, and can be installed using nearly any standard compression tool.

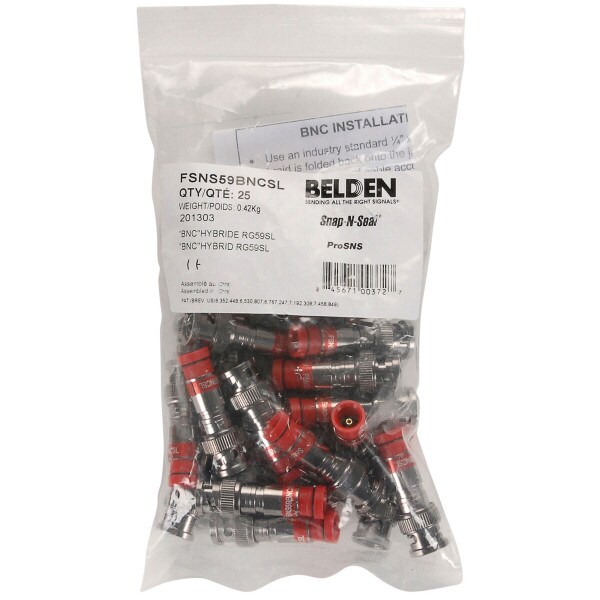

Specifications: • Base metal: Brass • Contact plating: Nickel-tin alloy • Sold per: 25 pack • Entry hole 6 mm • Termination style: Compression • Dimensions: 0.56" x 1.69" (uncompressed).

Product Details

BrandBelden
ModelFSNS59BNCSL
Part Number092-774
UPC845671004601
Unit of MeasurePackages
Weight0.9

Product Specifications

GenderMale
Mounting TypeCable Mount
