BUYOUT Philips 242226440048 LCD TV Full-Range Speaker Module 1-1/4" x 6-3/8" x 5-1/8"

Factory BuyoutsPart # 289-2378
Model: 242226440048

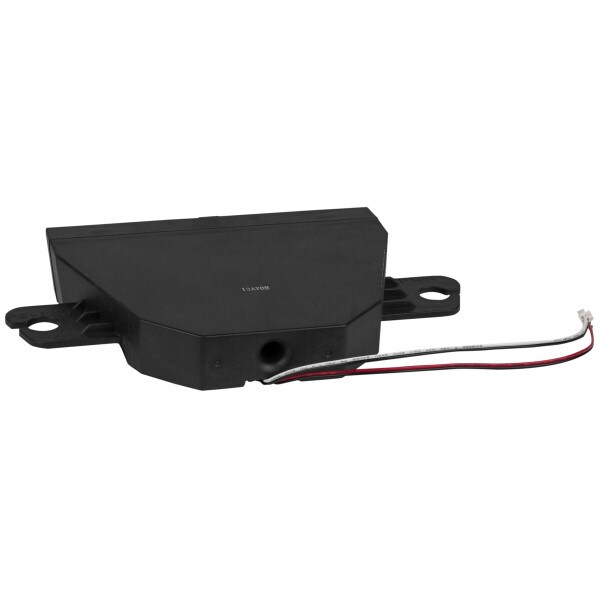

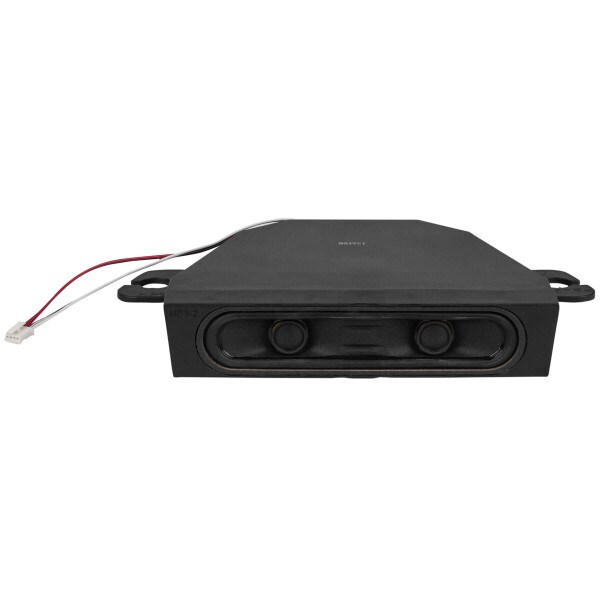

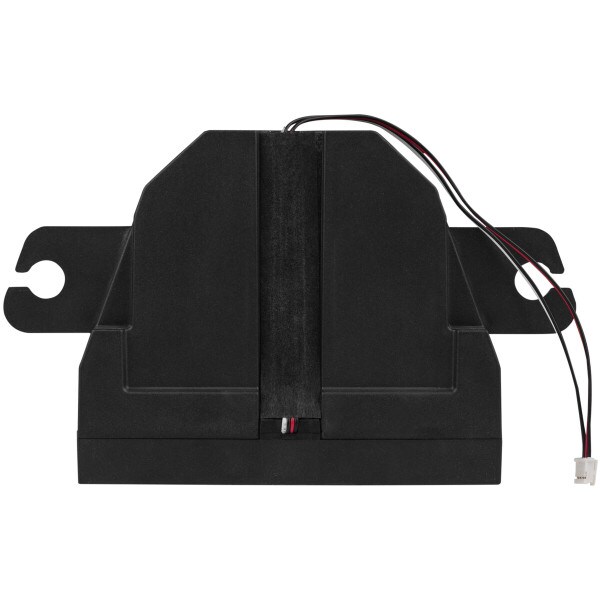

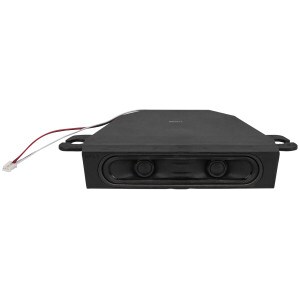

This 1-1/4" x 6-3/8" x 5-1/8" self-contained speaker module features a 1" x 5 " paper cone dual motor driver mounted in a vented enclosure. This compact module is the easiest way to add full-range audio to almost anything.

Key Features

  • Fully self-contained speaker module with driver installed in vented enclosure
  • Perfect for adding audio capability to models, art installations, and R/C cars
  • Rigid ABS plastic enclosure tuned to 140 Hz provides rich full-range audio
  • Dual motors are wired separately enabling multiple wiring configurations
BUYOUT $1.98
MSRP: $10.00
Save $8.02 (80%)
Bulk Pricing
Quantity:Qty: 1-9 $1.98/ea
Quantity:Qty: 10-99 $1.75/ea
Quantity:Qty: 100-499 $1.68/ea
Quantity:Qty: 500+ $1.39/ea
1242 In Stock
Get Notified When Available

We'll send you an email when Philips 242226440048 LCD TV Full-Range Speaker Module 1-1/4" x 6-3/8" x 5-1/8" is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Philips 242226440048 LCD TV Full-Range Speaker Module 1-1/4" x 6-3/8" x 5-1/8"

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this self-contained speaker module, which is part of a massive TV speaker factory buyout from Brazil.

With a frequency response of 100 to 14,000 Hz, this speaker module is perfect for full-range music, sound effects, and vocals. Consisting of a 1" x 5" paper cone driver with dual motors that is pre-installed into a 1-1/4" x 6-3/8" x 5-1/8" tuned enclosure. For flexibility, the dual 8 ohm motors are wired separately allowing these to be used in multiple wiring configurations, This module makes it easy to add audio capability to almost any project without taking up much space.

Use these speaker modules in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Model242226440048
Part Number289-2378
UPC848864049106
Unit of MeasureEach
Weight0.45

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance16Ω
Frequency Response100 to 14,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.5"

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
