20-16 AWG 15A Red/Black DC Quick Disconnect Power Connectors 10 Pair

Parts ExpressPart # 263-203
Create individual DC quick disconnects or lock the connectors together to form a multi-conductor quick disconnect.

Key Features

  • Outer plastic housings lock together for multi-conductor applications
  • Durable Red and black plastic housings for easy polarity identification
  • Includes crimp connect terminals for quick installation
Your Price: $13.69
MSRP: $21.99
Save $8.30 (38%)
Bulk Pricing
Quantity:Qty: 1-9 $13.69/ea
Quantity:Qty: 10+ $12.32/ea
1 In Stock
Get Notified When Available

We'll send you an email when 20-16 AWG 15A Red/Black DC Quick Disconnect Power Connectors 10 Pair is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

20-16 AWG 15A Red/Black DC Quick Disconnect Power Connectors 10 Pair

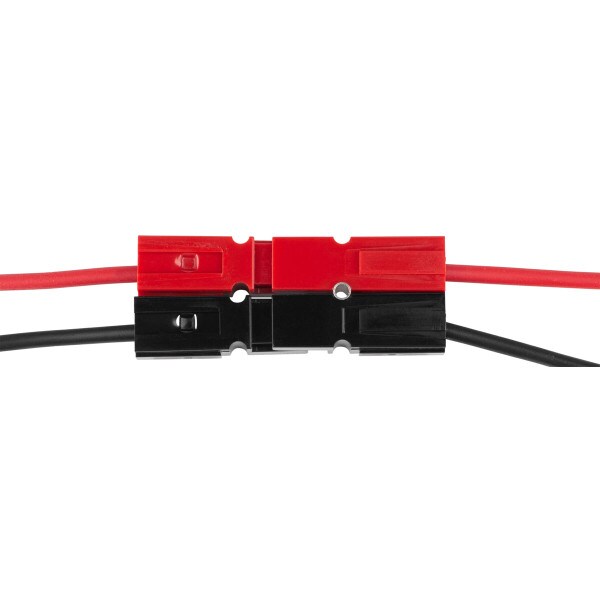

Make quick disconnect single, or multiple conductor connections with these durable red and black locking connectors with terminals. Crimp the metal terminals to your individual wires and then insert them into the plastic housing until the lock in place. Match the corresponding color for the right polarity and hook the two plastic housings together. The two metal terminals are kept tightly together by an internal metal flat spring. There is no male or female connection to worry about. Firmly pull the two housings apart to disconnect.

These quick disconnects work as multi-conductor connectors also. The plastic housings slide together and are kept in place by four included metal pins. This enables you to create a two or three conductor connector.

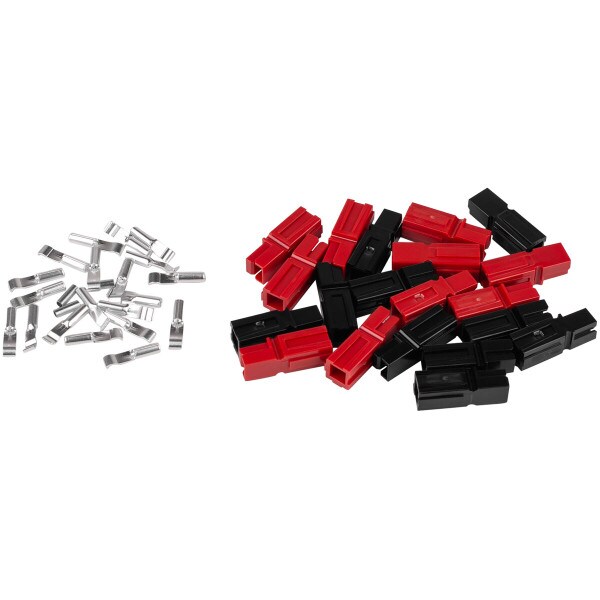

Specifications: • Wire gauge accepted: 20-16 • Current rating: 15A • 10 red and 10 black plastic housing dimensions: 0.97" L x 0.34" H x 0.34" D at its largest points • 20 metal terminal dimensions: 0.64" L x 0.15" W x 0.12" D at its largest points • 4 metal pins: 0.10" Dia. x 0.31" L.

Product Details

BrandParts Express
Part Number263-203
UPC848864053127
Unit of MeasurePackages
Weight0.06

Product Specifications

Connector TypeQuick-Disconnect
Terminal / Stud Size5/32"
Wire Gauge24-16 AWG
