2.1mm Panel Mount DC Barrel Power Jack

Parts ExpressPart # 090-5012
Popular dimension power jacks for projects and repair.

Key Features

  • Common 2.1 x 5.5 mm internal dimensions
  • Built-in N.C. switch that disconnects the extra terminal to prevent charging alkaline and other non-rechargeable batteries
Your Price: $1.89
MSRP: $3.99
Save $2.10 (53%)
Bulk Pricing
Quantity:Qty: 1-9 $1.89/ea
Quantity:Qty: 10+ $1.72/ea
1080 In Stock
Get Notified When Available

We'll send you an email when 2.1mm Panel Mount DC Barrel Power Jack is back in stock or available for preorder.

Order in the next 3 hr 28 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

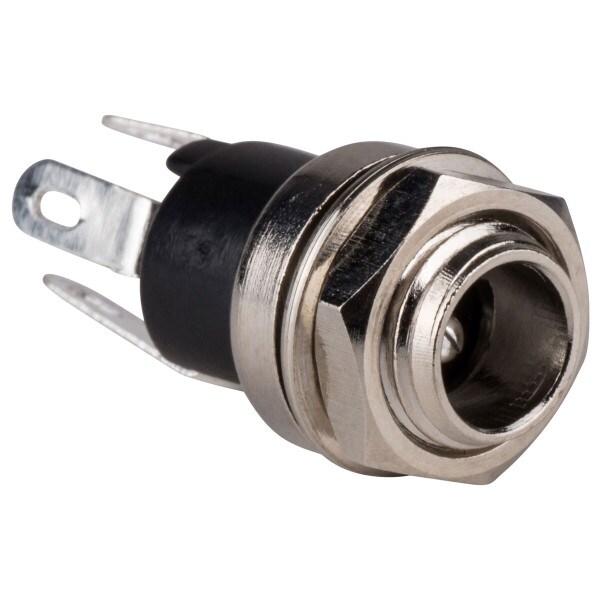

2.1mm Panel Mount DC Barrel Power Jack

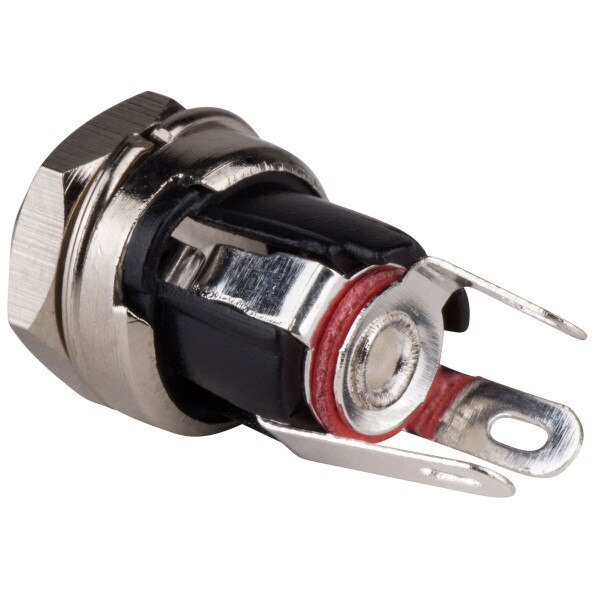

You can use this common DC jack for projects and internal repairs. Can be assembled tip positive or tip negative for DC applications. Works equally well for AC applications. The terminal connected to the center rivet is tip and the closest terminal to it is barrel. This jack has a normally closed switch built-in that disconnects the barrel to prevent charging alkaline and other non-rechargeable batteries in a portable project. That's what the extra terminal is for.

Specifications: • Dimensions with terminals: 0.9" H x 0.43" D • Mounting Diameter: 0.31" • Current capacity: 3 amps.

Product Details

BrandParts Express
Part Number090-5012
UPC848864024288
Unit of MeasureEach
Weight0.009

Product Specifications

DC Power Connector TypeJack
