  • 2 x 10W Amplifier Kit with Headphone/Audio Out Jack

CLEARANCE 2 x 10W Amplifier Kit with Headphone/Audio Out Jack

Parts ExpressPart # 320-6050
Enjoy building a 20W amplifier that uses the Yamaha YDA138-E Chip. Powerful enough to deliver quality sound to most bookshelf speakers, and has an audio out jack that kicks out the speaker output for private listening through your favorite headphones.

Key Features

  • Headphone jack kicks out the speaker output for private listening

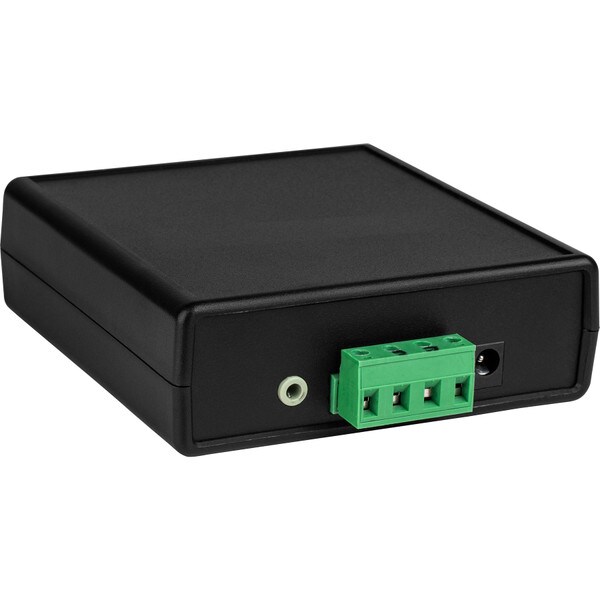

  • Includes all the jacks and terminals to build a solderless 10W x 2 audio Hi-Fi stereo amplifier
  • Powers directly from a car lighter jack (lighter power cord sold separately)
  • Cut a few precise holes in the enclosure and it's ready to go (drawing attached)
60 Day No Hassle Return Policy

Overview

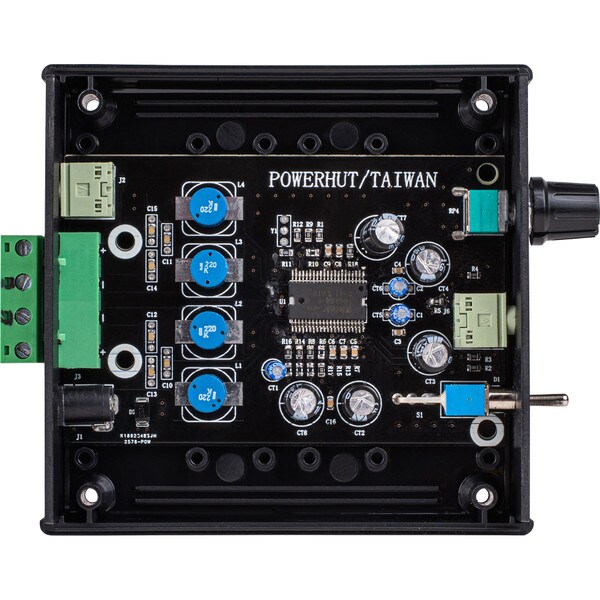

2 x 10W Amplifier Kit with Headphone/Audio Out Jack

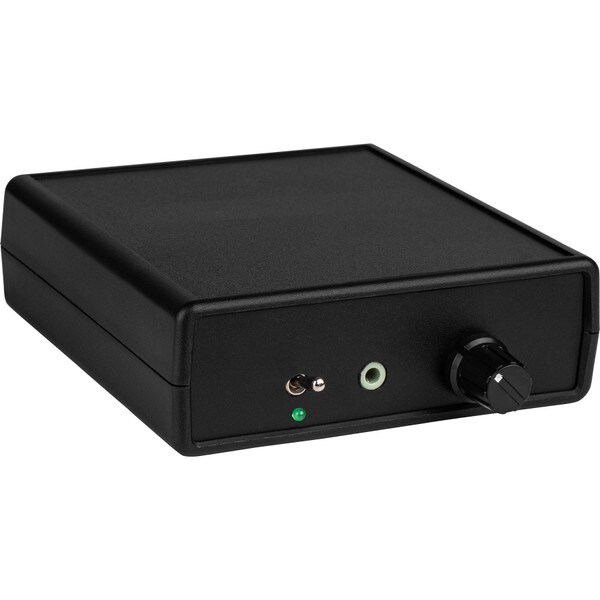

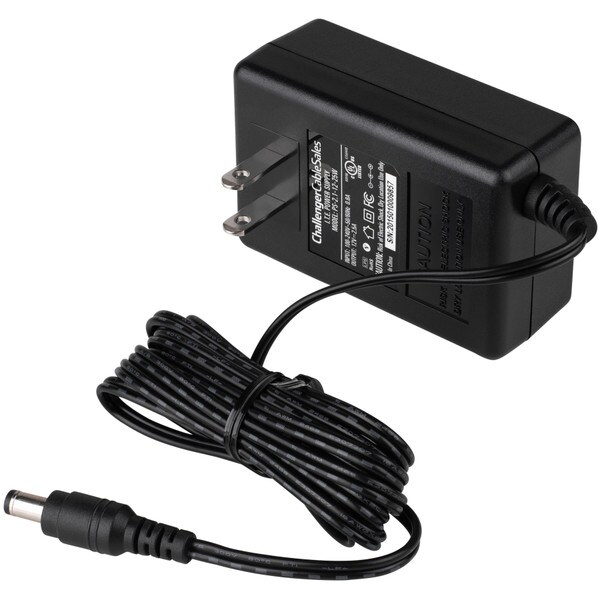

Quickly create a 12 VDC Hi-Fi stereo audio amplifier with headphone output with this kit featuring the Yamaha YDA138-E amp chip. It delivers quality sound to most bookshelf speakers and has all the jacks ready to accept all external components without any soldering. Drill a few precise holes in the included project box and your ready to go. Control the volume with the built-in potentiometer or plug your smartphone into the Aux-in jack and use an App to control volume and tone. The only tool you need to finish is a small screw driver to tighten the screws in the case and speaker wire jack. Plug the included 12 VDC 2A AC adapter into the 2.1 x 5.5mm tip positive power jack, add speakers, and a audio source then crank it up. Use the attached drawing to cut your holes

There's still one more option that most small amplifiers don't have. A 3.5mm stereo headphone jack the kicks out the speaker output for private listening. Pull out your best headphones and hook up your favorite audio component player, or use it as a headphone amplifier for multiple headphones.

Specifications: • Power output: 10.98W x 2 RMS @ 4 ohms with 12 VDC • Frequency response: 20-20 kHz • THD+N @ rated power: 2.5% • SNR, A-weighted: 97.6 dB • Channel crosstalk: 43 dB • Max input sensitivity voltage: 230 mV • Headphone jack: 50mW • Board dimensions: 2.6" W x 4" D x 0.75" H without added jacks and controls • Project dimensions without the knobs or switch: 4.13" x 4.33" x 1.38"

Product Details

BrandParts Express
Part Number320-6050
UPC848864066134
Weight0.86

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesVolume / Tone Control
