  • 2-1/2" Paper Cone Tweeter 8 Ohm

BUYOUT 2-1/2" Paper Cone Tweeter 8 Ohm

Factory BuyoutsPart # 279-453
Model: T-25
This 2-1/2" paper cone tweeter is a great choice as a replacement for many speaker systems from the last few decades or even new budget designs.

Key Features

  • Common size frame and cutout makes this a great replacement driver
  • 1,600 Hz Fs allows crossover points as low as 3,200 Hz
  • 1/2" voice coil can handle up to 35 watts RMS
  • Paper cone delivers natural response
Get Notified When Available

We'll send you an email when 2-1/2" Paper Cone Tweeter 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

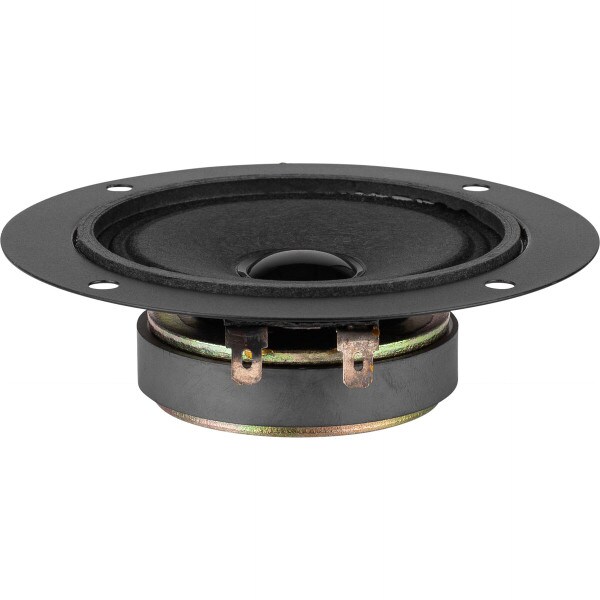

2-1/2" Paper Cone Tweeter 8 Ohm

With a paper cone and surround, mylar dustcap, and 1/2" voice coil this 2-1/2" this tweeter is similar in size and sound to those used in many speaker systems from the 70's and 80's. In most cases, the 4" diameter faceplate and 3" diameter cutout make this tweeter a drop-in replacement. In addition, the voice coil has a Ferrofluid cooling which improves damping and power handling.

Special purchase -- limited quantities available!

Product Details

BrandFactory Buyouts
ModelT-25
Part Number279-453
UPC848864027098
Unit of MeasureEach
Weight0.55

Product Specifications

Cone / Dome Diameter2.5"
Cutout Diameter3.125
Tweeter TypePaper Cone
Power Handling (RMS)35 Watts
Impedance8Ω
Frequency Response3,200 to 20,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1600Hz
DC Resistance (Re)7.58Ω
Voice Coil Inductance (Le)0.42mH

Mounting Information

Overall Outside Diameter4"
Depth1.25"
