CLEARANCE 12V 2A DC Switching AC Power Supply Adapter with 2.1 x 5.5mm, 2.5 x 5.5mm, and 1.7 x 4.0mm Tips

Parts Express
Part #120-1200

CLEARANCE 12V 2A DC Switching AC Power Supply Adapter with 2.1 x 5.5mm, 2.5 x 5.5mm, and 1.7 x 4.0mm Tips

Parts Express
Part #120-1200

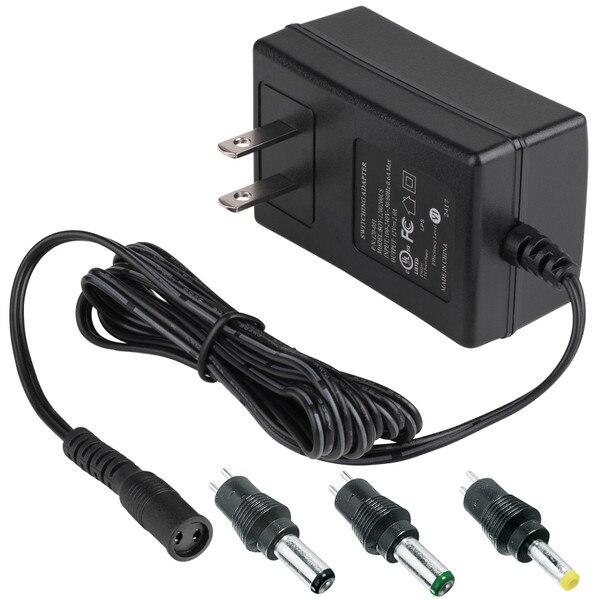

Universal AC adapter input voltage 100-240 VAC, output voltage is 12 VDC with 2,000 mA current capacity. Includes removable 2.1 x 5.5 mm, 2.5 x 5.5 mm, and 1.7 x 4.0 mm tips for multiple applications.
Key Features
  • 2 amps of output current for power hungry electronics
  • Three included tip options for multi-uses
  • Additional tip option for available for multiple applications
  • Meets U.S. level VI efficiency requirements
  • UL approved for safety
  • Input 100-240 VAC 50/60 Hz for international use
  • 6 ft. cord for versatility

Overview

12V 2A DC Switching AC Power Supply Adapter with 2.1 x 5.5mm, 2.5 x 5.5mm, and 1.7 x 4.0mm Tips

This universal adapter allows the user to choose the plug size/style for their application. DC polarity can be easily changed by reversing the plug. This adapter has an input voltage of 120-240 VAC, 6ft. cord length, and is UL approved. The voltage output is 12 VDC with a powerful 2,000 mA of current to meet or exceed your power-hungry electronic devices. Cable boxes, modems, and many DIY boards require 1.12 to 2A amps to keep the 12 V flowing. Includes removable 2.1 x 5.5 mm, 2.5 x 5.5 mm, and 1.7 x 4.0 mm tips for multiple applications.

Specifications:• Input voltage: 100-240 VAC @ 50/60 Hz • Output voltage: 12 V @ 2A • Cord length: 6 ft. • Tip hole size: 0.06" with 0.112" space in-between • Adapter dimensions: 2-13/16" H x 1-3/4" W x 15/32" D without AC prongs.

Optional Tips:


Tip SizePart Number
2.1 x 5.0 mm120-082
3.5 mm 120-080
1.35 x 3.5 mm 120-088

Product Details

BrandParts Express
Part Number120-1200
UPC848864059105
Weight0.33

Product Specifications

Center/Tip PolarityReversible
Current Capacity2000mA
DC Output Voltage12V
Input Voltage100~240 VAC
Plug SizeMulti-plug
