  • 1208PO38A 3" x 5" 5W Paper Cone Speaker 8 Ohm

BUYOUT 1208PO38A 3" x 5" 5W Paper Cone Speaker 8 Ohm

Factory Buyouts
Part #299-4334

BUYOUT 1208PO38A 3" x 5" 5W Paper Cone Speaker 8 Ohm

Factory Buyouts
Part #299-4334
Model: 1208PO38A

The 1208PO38A 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.

Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
BUYOUT $2.88
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Ships next business day. Details

744In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

1208PO38A 3" x 5" 5W Paper Cone Speaker 8 Ohm

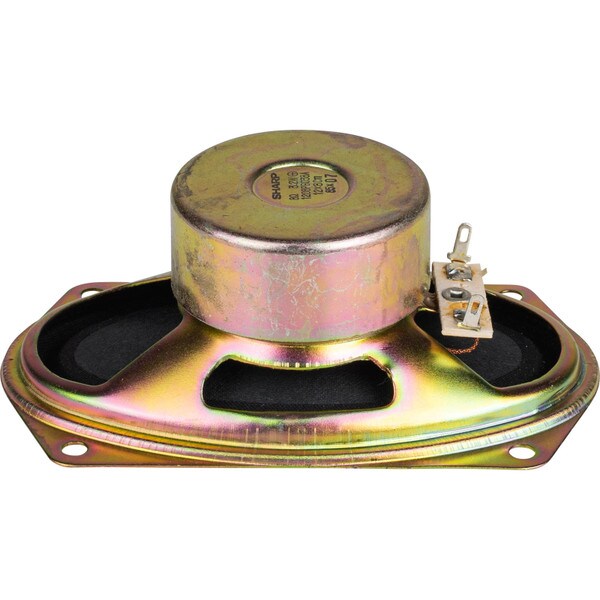

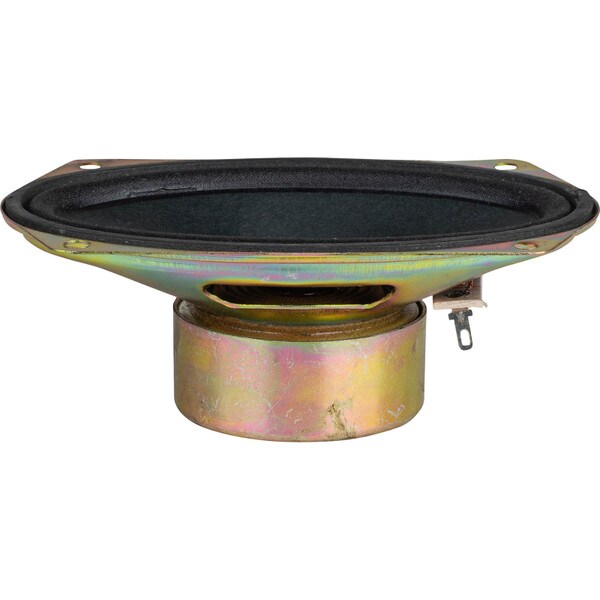

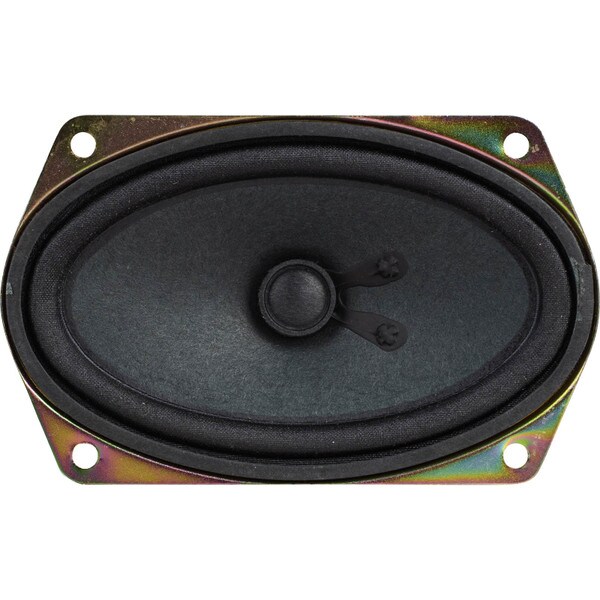

The 1208PO38A 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. This driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
Model1208PO38A
Part Number299-4334
UPC848864074108
Unit of MeasureEach
Weight0.55

Product Specifications

Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8Ω
Frequency Response150 to 10,000Hz
Sensitivity85.07dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)145.2Hz
DC Resistance (Re)7.279Ω
Voice Coil Inductance (Le)0.1679mH
Mechanical Q (Qms)6.594
Electromagnetic Q (Qes)2.094
Total Q (Qts)1.589
Compliance Equivalent Volume (Vas)0.05ft³
Diaphragm Mass Inc. Airload (Mms)1.886g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)40.72cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth2"
# Mounting Holes4
