BUYOUT 1208P-138A 3" x 5" 5W Paper Cone Speaker 8 Ohm

Factory BuyoutsPart # 299-4144

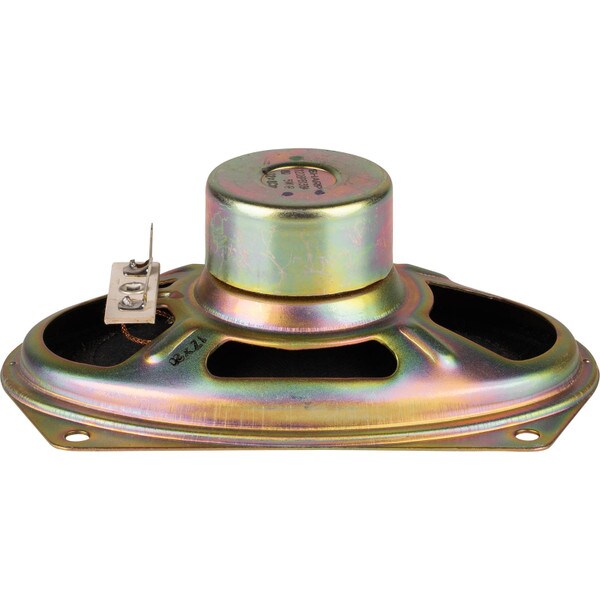

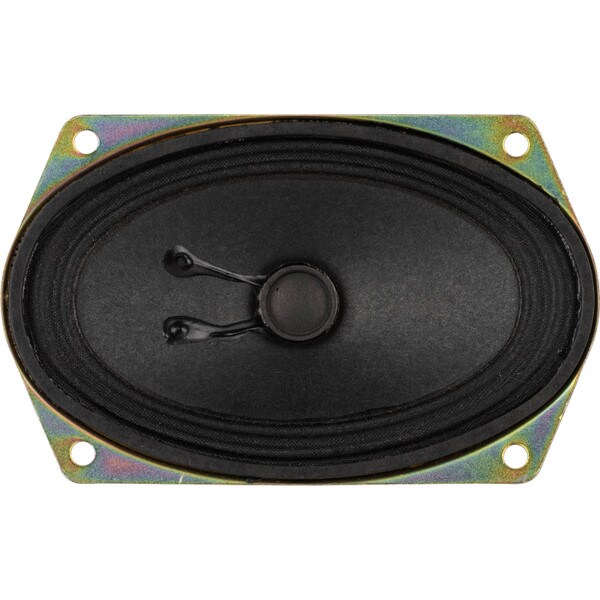

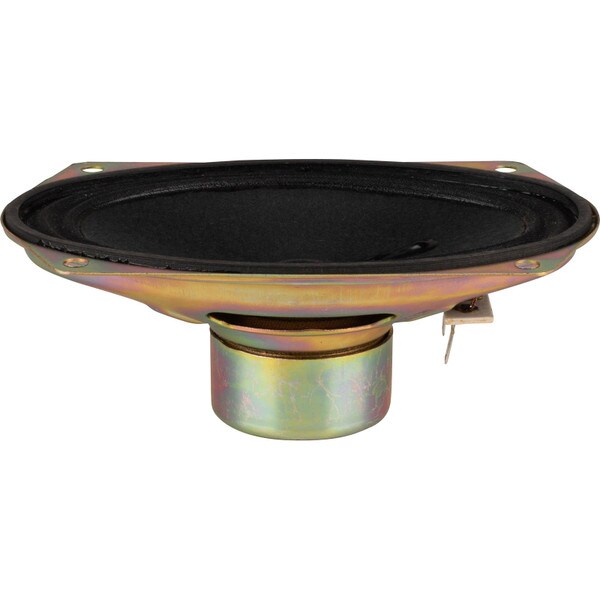

The 1208P-138A 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.

Key Features

  • Shielded magnet assembly is suitable for use near sensitive electronics
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
BUYOUT $1.44
MSRP: $2.88
Save $1.44 (50%)
Bulk Pricing
1114 In Stock
Get Notified When Available

We'll send you an email when 1208P-138A 3" x 5" 5W Paper Cone Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

1208P-138A 3" x 5" 5W Paper Cone Speaker 8 Ohm

The 1208P-138A 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. This driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandCoast Buyouts
Part Number299-4144
UPC848864072326
Unit of MeasureEach
Weight0.47

Product Specifications

Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance8Ω
Frequency Response150 - 15,000Hz
Sensitivity81.47dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)153.8Hz
DC Resistance (Re)6.578Ω
Voice Coil Inductance (Le)0.1691mH
Mechanical Q (Qms)4.293
Electromagnetic Q (Qes)4.933
Total Q (Qts)2.296
Compliance Equivalent Volume (Vas)0.043ft³
Diaphragm Mass Inc. Airload (Mms)2.024g
Surface Area of Cone (Sd)40.72cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth1.75"
# Mounting Holes4
