BUYOUT 1280P-14WA 3" x 5" 5W Paper Cone Speaker 16 Ohm

Read 1 Review or
Factory Buyouts
Part #299-4174

BUYOUT 1280P-14WA 3" x 5" 5W Paper Cone Speaker 16 Ohm

Factory Buyouts
Part #299-4174
Model: 1208P-14WA
Read 1 Review or
The 1280P-14WA 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.
Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
BUYOUT $2.88
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Order in the next 0 hr 51 min to ship today. Details

5019In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

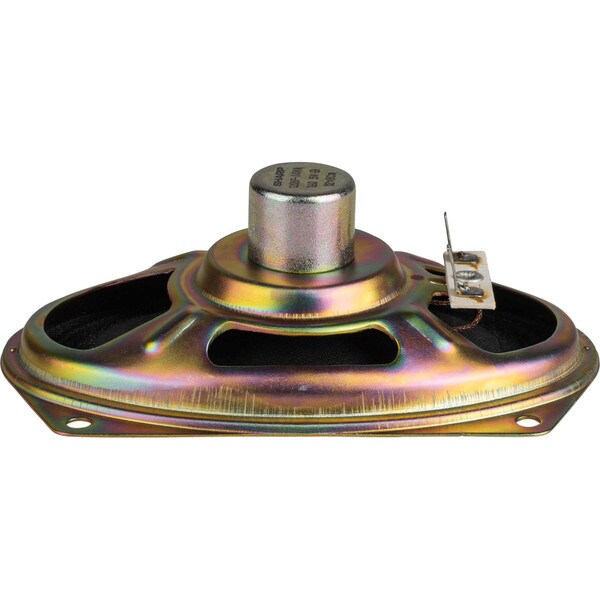

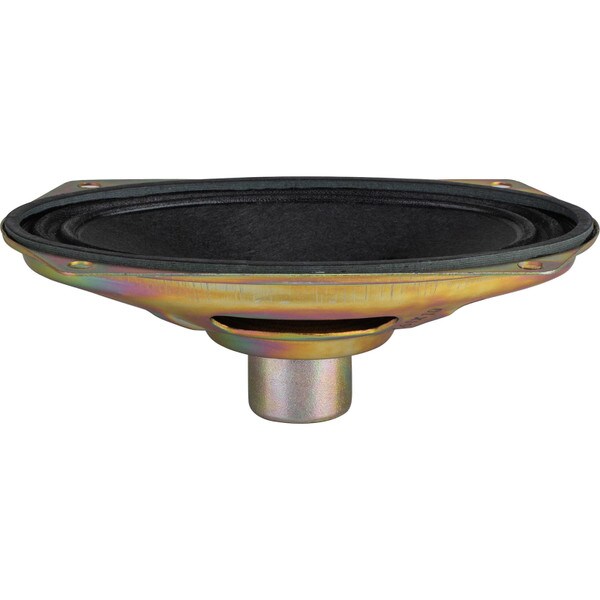

1280P-14WA 3" x 5" 5W Paper Cone Speaker 16 Ohm

The 1280P-14WA 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. This driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
Model1208P-14WA
Part Number299-4174
UPC848864073347
Unit of MeasureEach
Weight0.25

Product Specifications

Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance16Ω
Frequency Response150 - 15,000Hz
Sensitivity78.73dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)162.4Hz
DC Resistance (Re)15.5Ω
Mechanical Q (Qms)4.005
Electromagnetic Q (Qes)9.765
Total Q (Qts)2.84
Compliance Equivalent Volume (Vas)0.038ft³
Diaphragm Mass Inc. Airload (Mms)2.031g
Surface Area of Cone (Sd)40.72cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Depth1.75"
# Mounting Holes4
