  • 120319BF 1" x 3-1/8" Paper Cone Speaker 6 Ohm

BUYOUT 120319BF 1" x 3-1/8" Paper Cone Speaker 6 Ohm

Factory Buyouts
Part #289-2290

BUYOUT 120319BF 1" x 3-1/8" Paper Cone Speaker 6 Ohm

Factory Buyouts
Part #289-2290
Model: 120319BF
The 120319BF driver is a rectangular driver that has a wide frequency range of 200 to 15,000 Hz. The short height of this driver makes it optimal for situations where surface space is limited such as models and DIY projects.
Key Features
  • Rubber surround and motor design allow this driver to have great low-frequency extension for its size
  • The flange design makes this driver ideal for unique projects involving limited space
  • 6 Ohm impedance mates well to most small amplifiers
BUYOUT $1.31
Bulk Pricing
Quantity:Qty: 1-9 $1.31/ea
Quantity:Qty: 10-49 $0.88/ea
Quantity:Qty: 50+$0.68/ea
Order in the next 0 hr 51 min to ship today. Details

Only 74 In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

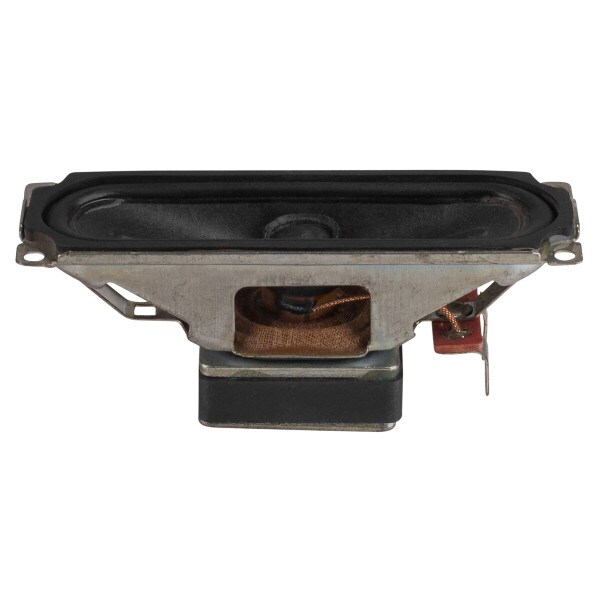

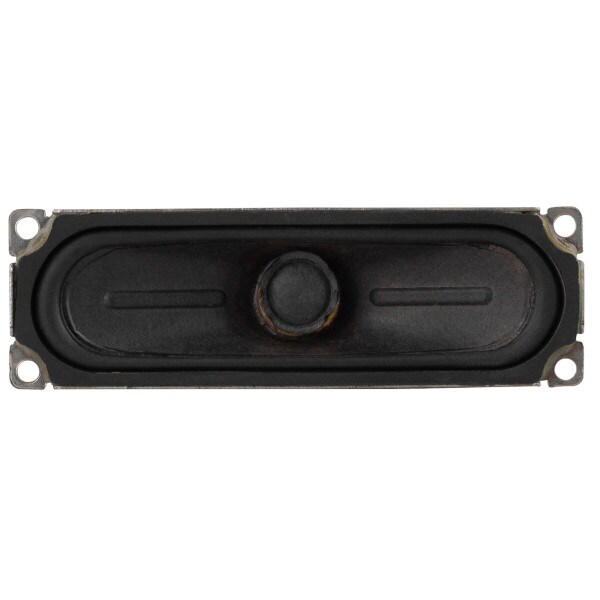

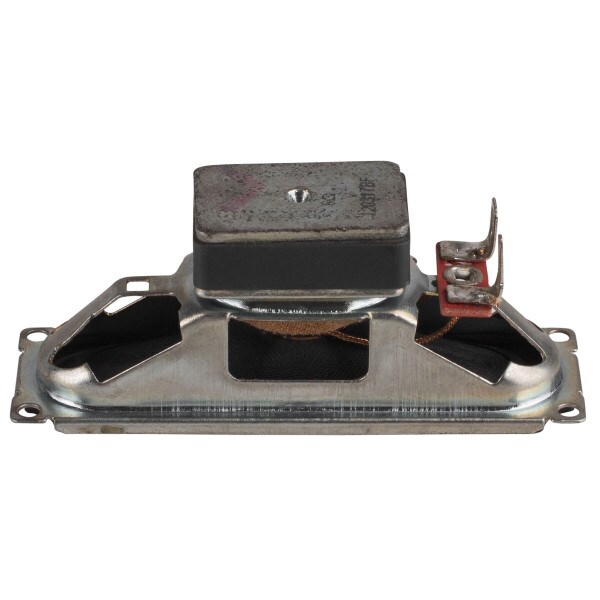

120319BF 1" x 3-1/8" Paper Cone Speaker 6 Ohm

The 120319BF is a rectangular full-range driver that has a frequency range of 320 to 15,000 Hz. The unique flange on this driver allows this driver to be optimal for situations where surface space is limited such as models and DIY projects.

Product Details

BrandFactory Buyouts
Model120319BF
Part Number289-2290
UPC848864048673
Unit of MeasureEach
Weight0.1

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance
Frequency Response200 to 15,000Hz
Sensitivity75.1dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)260Hz
DC Resistance (Re)5.54Ω
Voice Coil Inductance (Le)0.266mH
Mechanical Q (Qms)4.21
Electromagnetic Q (Qes)7.27
Total Q (Qts)2.66
Compliance Equivalent Volume (Vas)0.0021ft³
BL Product (BL)1.059T·m
Surface Area of Cone (Sd)10.17cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter1 x 3.155"
Baffle Cutout Diameter0.78 x 2.91"
Depth1.12"
# Mounting Holes4
