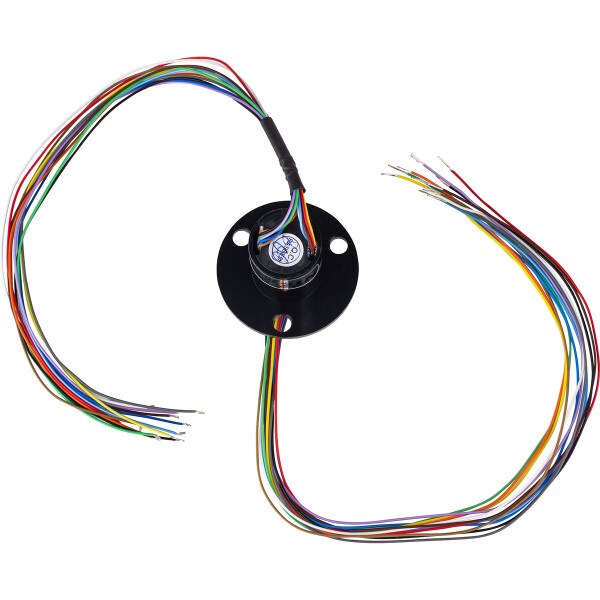

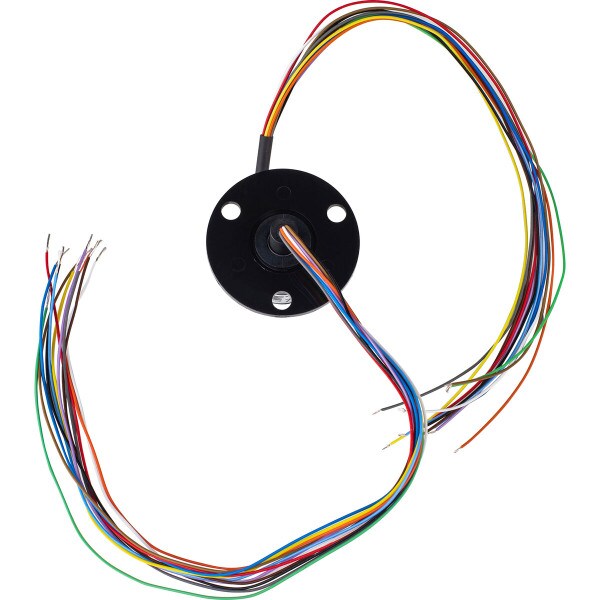

CLEARANCE 12-Wire 26 AWG 2A 240V 22mm 360 Degree Rotating Electrical Slip Ring with 44mm Flange

NTEPart # 251-008
Model: 76-SR-6
Continually transfer data and power reliably from stationary sources to rotating parts with this 12-wire slip ring commutator. Send data through moving robotic projects, or create large and small rotating light displays with moving wheels.

Key Features

  • Gold-on-gold alloy fiber brush to plated ring contacts inside for dependability
  • PTFE coated wire insulation withstands high temperatures, high frequency and other hindrances
  • Stranded 26 AWG silver plated copper wires for better signal transfer
Get Notified When Available

We'll send you an email when 12-Wire 26 AWG 2A 240V 22mm 360 Degree Rotating Electrical Slip Ring with 44mm Flange is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

12-Wire 26 AWG 2A 240V 22mm 360 Degree Rotating Electrical Slip Ring with 44mm Flange

Create projects that twist and turn without damaging power or signal wires. This 12-wire slip ring harness maintains electrical connection, when rotating up to 250 RPM, by using gold-on-gold alloy fiber brushes to plated ring contacts. Imagine projects like wind turbines, wheel encoders, or spinning LED lights in wheels that seem impossible without breaking or shorting out wires, but now are doable with a slip ring wiring harness.

Specifications: • Rated voltage: Up to 240 VDC/240 VAC • Rated current: 2A per ring • Leads: 26 AWG silver plated copper with color coded PTFE insulator • Lead length: 9.843" (250 mm) • Dielectric strength: 500 VAC at 50 Hz, 60s • Insulation resistance: 1000M/500 VDC • Electrical noise: <0.01 ohms • Temperature range: ?20 to +80° C • Operating humidity: 0 to 60% RH • Plastic flange dimensions: 1.732" (44 mm) with three 0.217" (5.5 mm) mounting holes • Plastic rotating body: 0.866" Dia. x 1.102" L (22 x 28 mm).

Product Details

BrandNTE
Model76-SR-6
Part Number251-008
UPC768249274667
Unit of MeasureEach
Weight0.1
