12-Way ATC/ATO Blade Fuse Block with Individual LED Status Lights, Assorted Fuses, Ground Terminals

Parts ExpressPart # 070-688

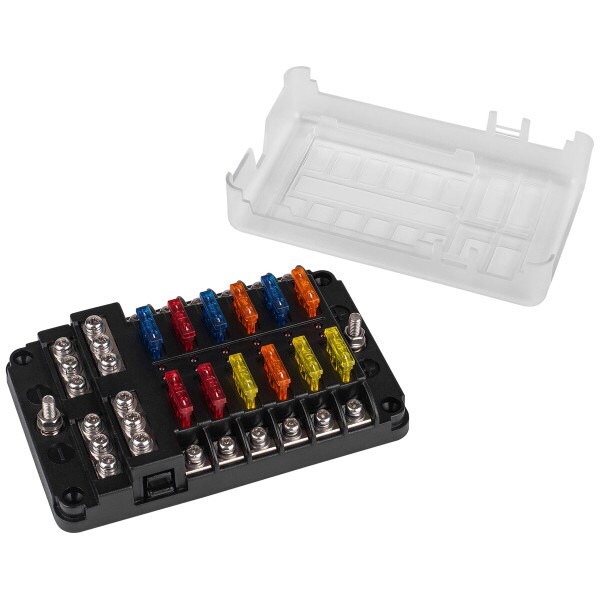

Protect your equipment indoor/outdoor with this weather resistant 12 gang fuse block with 12 ground terminals, 12 fuses, 12 indicator LEDs, and a cover.

Key Features

  • Stainless steel screws and nickel plated copper terminals for marine applications
  • 12 independent LEDs show fuse status
  • 12 ground terminals for quick installation
  • Includes 12 fuses and labels for each terminal

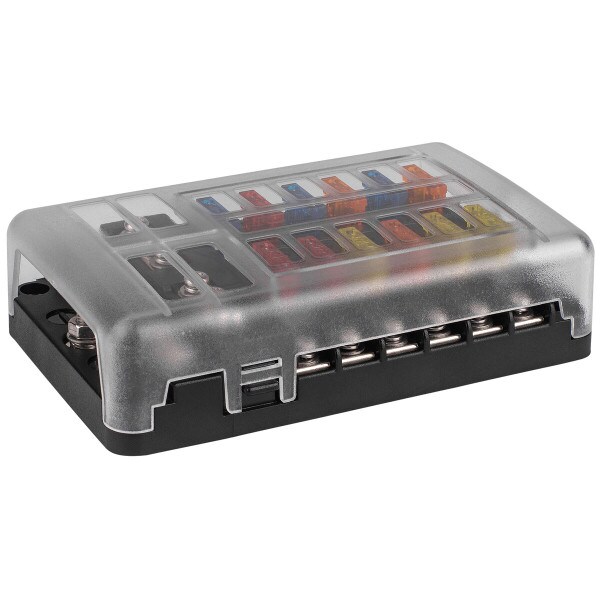

  • Protective cover prevents accidental shorts
  • Each circuit handles up to 30A, or 100A total including all circuits for versatility
  • #6 stud size for each terminal and #10 stud size for main terminals aids in quick installation
Your Price: $26.98
MSRP: $62.99
Save $36.01 (57%)
Bulk Pricing
Quantity:Qty: 1-9 $26.98/ea
Quantity:Qty: 10+ $25.98/ea
17 In Stock
Get Notified When Available

We'll send you an email when 12-Way ATC/ATO Blade Fuse Block with Individual LED Status Lights, Assorted Fuses, Ground Terminals is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

12-Way ATC/ATO Blade Fuse Block with Individual LED Status Lights, Assorted Fuses, Ground Terminals

This one fuse block enables you to protect 12 electronic DC devices with one power source. Each output handles up to a 30A fuse, but total output for the block must be less than 100A. The fuse block comes with a fuse for each terminal from 5A to 20A. The fuse must match closely to the current draw of your electronic device without exceeding the amperage of the fuse. Each fuse terminal has a red LED light that turns on when a fuse blows. A ground wire must be hooked up to the main ground terminal for the LEDs to light up when the fuse is blown. The extra shorted together ground terminals are there for convenience only and are not tied to any positive terminals. This fuse block protects DC lights, motors, appliances, chargers, audio equipment, and other electronic equipment as long as they all use the same DC voltage.

The fuse block's total amperage rating is 100A @ 12VDC. This makes it perfect for on/off road vehicle applications. Nickel plated copper terminals and stainless steel hardware make this fuse block durable enough for boats, ATVs, and other off road vehicles. The incoming M5 stainless steel studs handle 4 to 6 gauge wire and the 12 stainless steel M3.5 output screws handle 12 to 16 gauge wire. Each stud has a washer and lock washer to prevent loose connections under heavy vibrating conditions. Wrap the wire around the studs, or use fork/ring terminals for quick installation. After all the wires are secure, insert the fuses and snap the protective cover on and you're ready to supply power to the fuse block.

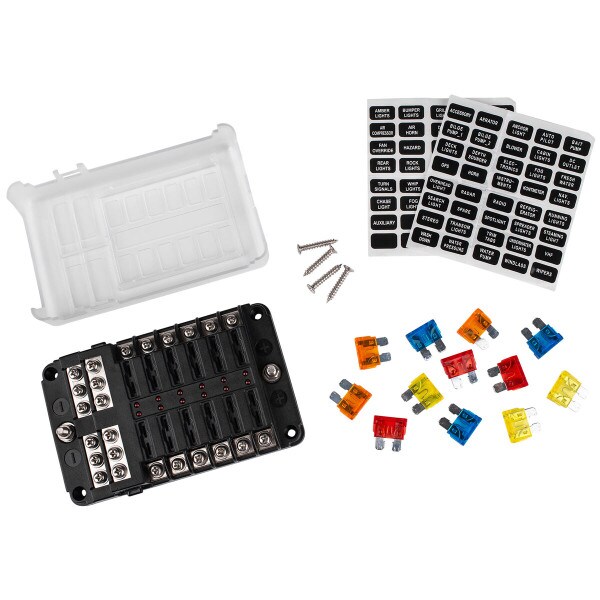

Specifications: • Maximum total current: 100A @ 12 VDC • Maximum current per terminal: 30A @ 12 VDC • Included Fuses: 3 x 5A, 3 x 10A, 3 x 15A, and 3 x 20A • Included #6 stainless steel hardware: Twelve screws, washers, and lock washers • Included #10 stainless steel hardware: two #10 studs, washers, and lock washers • Terminal material: Nickel plated copper • Total deminsions with cover on: 3-1/4" D x 5-1/2" L x 1-1/4" H

Product Details

BrandParts Express
Part Number070-688
UPC848864055152
Unit of MeasureEach
Weight0.65
