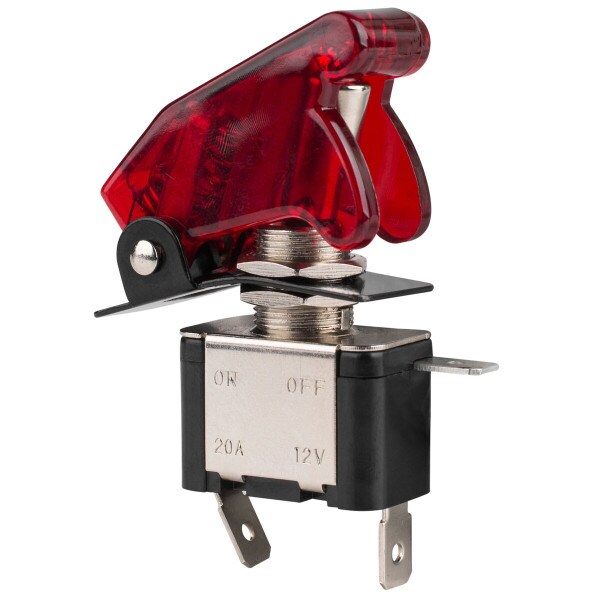

CLEARANCE 12 VDC 20A Toggle Switch with Red LED and Cover

Parts ExpressPart # 060-458
Metal covered toggle with metal pivot pin enables this switch to outlast illuminated plastic toggle switches. Red transparent cover prevents switch from being turned on accidently. Pull up to 25 amps @ 12 VDC through it for automotive projects and more.

Key Features

  • Metal covered toggle and metal pivot pin enables it to outlasts illuminated all plastic versions
  • Red LED can be wired always on or only on when switch is in closed position
  • Includes red transparent cover to prevent accidental switching
  • Standard 1/4" spade terminals
  • Standard 1/2" mounting hole
Get Notified When Available

We'll send you an email when 12 VDC 20A Toggle Switch with Red LED and Cover is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

12 VDC 20A Toggle Switch with Red LED and Cover

This switch's metal covered round toggle with a metal pivot pin delivers enduring performance. A long lasting 5 mm red LED at the tip of the toggle identifies on status, or rewire it to stay lit all the time making it easy to locate. The red transparent cover prevents the switch from being turned on accidently and turns the switch off when you close it after the switch has been turned off.

Specification: • Body dimensions: 1.10" L x 0.64" W x 0.76" H • Shaft dimensions: 0.45" H x 0.47" Dia. • Toggle dimensions: 0.80" H x 0.28" Dia. • Terminal size: 0.25" W x 0.40" H x 0.03" D.

Product Details

BrandParts Express
Part Number060-458
UPC848864046143
Unit of MeasureEach
Weight0.05

Product Specifications

CircuitSPST
Contact Rating @ Voltage20A 12 VDC
IlluminationIlluminated
