11" x 6-1/2" Paging Horn Indoor/Outdoor

Name: 11" x 6-1/2" Paging Horn Indoor/Outdoor
Brand: Parts Express
SKU: 300-063
Price: 50.67 USD
Availability: InStock
Rating: 4 (9 reviews)

Parts ExpressPart # 300-063

Read 9 Reviews | 3 Questions, 15 Answers or

Overview

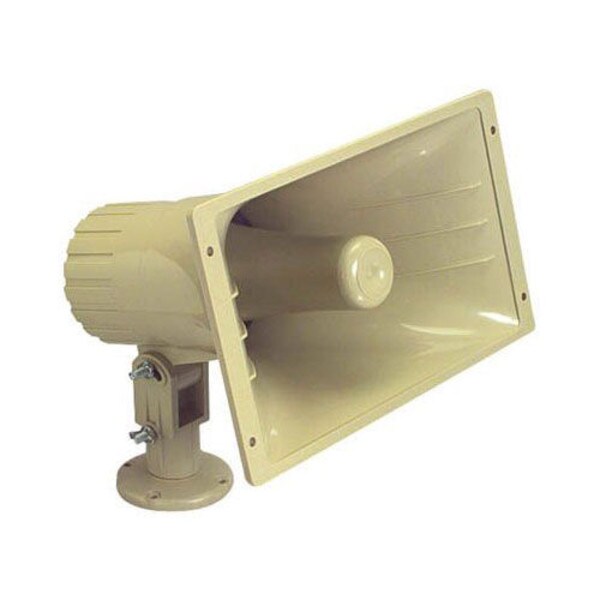

11" x 6-1/2" Paging Horn Indoor/Outdoor

This high-output paging horn features a high-impact tan ABS casing with swivel bracket, indoor/outdoor weatherproof construction, and built-in dual line matching transformer that's 70V/25V selectable, or bypass for 8 ohms. Speaker wire connection: 1 ft. attached pigtail. Line voltage: 70.7V and 25V (screw selector). Power taps: 70V: 2, 4, 8, 16, and 32 watts; 25V: 1, 2, 4, 8, and 16 watts.

Specifications: • Nominal power handling: 32 watts • Frequency response: 300-14,000 Hz. SPL: 125 dB 32W/4 ft. • Dimensions: 11" W x 6-1/2" H x 9-1/2" D

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details
Brand	Parts Express
Part Number	300-063
UPC	759377080053
Unit of Measure	Each
Weight	5.1216

Product Specifications
Speaker Type	PA Horn Speaker
