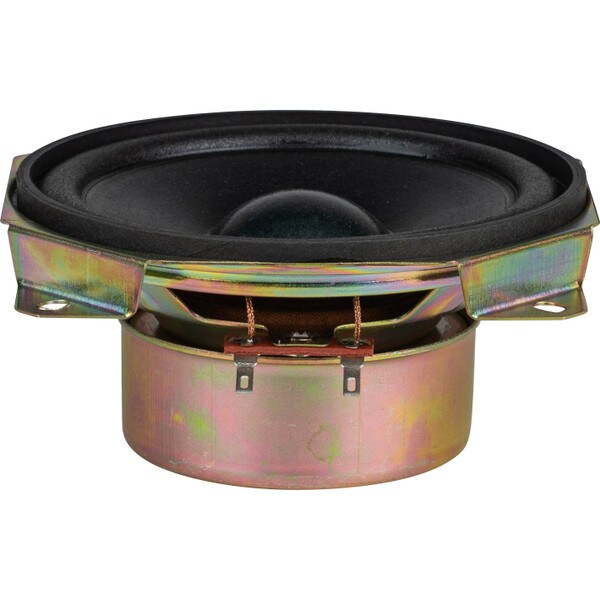

CLEARANCE 10PBG6WA 4" Treated Paper Cone Full Range Speaker 16 Ohm

Factory BuyoutsPart # 299-4330
Model: 10PBG6WA

The 10PBG6WA 4" Treated Paper Cone Full Range Speaker utilizes a treated paper cone, treated cloth surround and shielded magnet making this a great choice in high-humidity environments and near sensitive elcetronics.

Key Features

  • Treated paper cone and cloth surround for moisture resistance
  • 16 ohm impedance makes this a great candidate for arrays
  • Shielded magnet means this is safe for use around sensitive electronics.
Get Notified When Available

We'll send you an email when 10PBG6WA 4" Treated Paper Cone Full Range Speaker 16 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

10PBG6WA 4" Treated Paper Cone Full Range Speaker 16 Ohm

The 10PBG6WA 4" Treated Paper Cone Full Range Speaker utilizes a treated paper cone, treated cloth surround and shielded magnet making this a great choice in high-humidity environments and near sensitive electronics. A 16 ohm impedance makes it a cheat choice for use in multiples, such as arrays.

Product Details

BrandFactory Buyouts
Model10PBG6WA
Part Number299-4330
UPC848864074085
Unit of MeasureEach
Weight0.7

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.5
Power Handling (RMS)8 Watts
Power Handling (MAX)16 Watts
Impedance16Ω
Frequency Response115 to 10,000Hz
Sensitivity85.56dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)116.7Hz
DC Resistance (Re)14.26Ω
Voice Coil Inductance (Le)0.3527mH
Mechanical Q (Qms)4.296
Electromagnetic Q (Qes)2.836
Total Q (Qts)1.534
Compliance Equivalent Volume (Vas)0.1232ft³
Diaphragm Mass Inc. Airload (Mms)2.898g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)62.21cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4"
Baffle Cutout Diameter4"
Depth2"
# Mounting Holes4
