  • Sharp 1004PB32WA 1-3/4" x 4" Paper Cone Shielded Full-Range Speaker 16 Ohms

BUYOUT Sharp 1004PB32WA 1-3/4" x 4" Paper Cone Shielded Full-Range Speaker 16 Ohms

1 Question, 1 Answer or
Factory Buyouts
Part #299-4220

BUYOUT Sharp 1004PB32WA 1-3/4" x 4" Paper Cone Shielded Full-Range Speaker 16 Ohms

Factory Buyouts
Part #299-4220
Model: 1004PB32WA
1 Question, 1 Answer or

The Sharp 1004PB32WA 1-3/4" x 4" paper cone shielded full-range speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 14,000 Hz. The 16 ohm impedance makes this driver perfect for wiring multiples in parallel to increase power handling and overall output capability.

Key Features
  • Common size used in many popular TV's
  • Naturally damped paper cone delivers smooth response
  • Shielded magnet allows use near sensitive electronic equipment
  • Treated cloth surround offers many years of reliable performance
BUYOUT $2.88
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Order in the next 3 hr 11 min to ship today. Details

1536In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sharp 1004PB32WA 1-3/4" x 4" Paper Cone Shielded Full-Range Speaker 16 Ohms

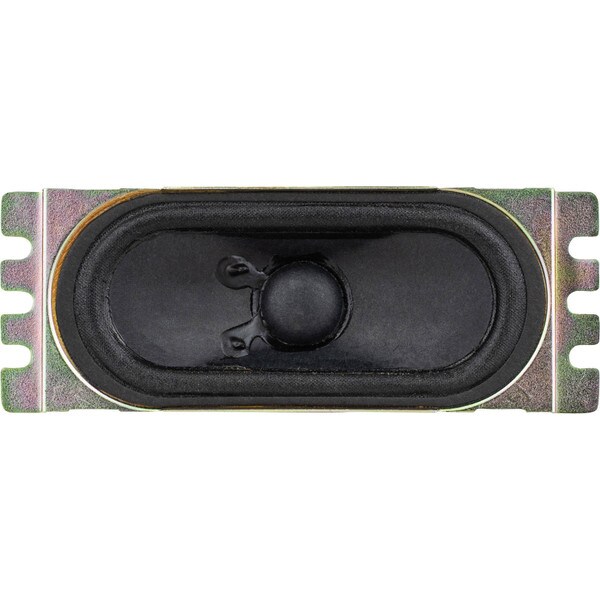

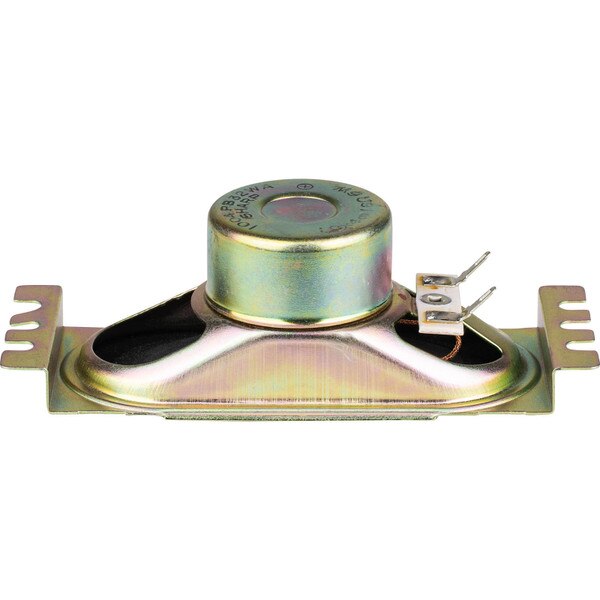

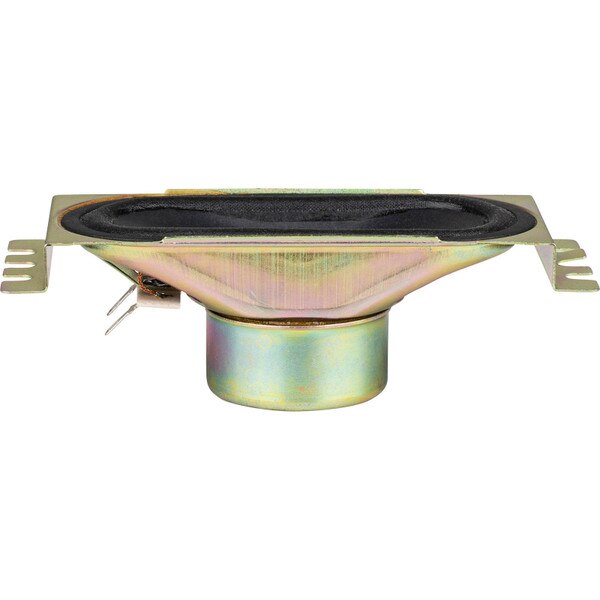

The Sharp 1004PB32WA 1-3/4" x 4" paper cone shielded full-range driver has a 4-3/4" x 1-3/4" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. The high aspect ratio and shielded magnet makes this speaker perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
Model1004PB32WA
Part Number299-4220
UPC848864073576
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2-1/2 x 4"
Bolt Circle Diameter4.5
Power Handling (RMS)6 Watts
Power Handling (MAX)12 Watts
Impedance16Ω
Frequency Response150 to 14,000Hz
Sensitivity77dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)224Hz
DC Resistance (Re)15.1Ω
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)3.54
Electromagnetic Q (Qes)5.26
Total Q (Qts)2.12
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.065mm/N
BL Product (BL)2.35T·m
Diaphragm Mass Inc. Airload (Mms)1.37g
Maximum Linear Excursion (Xmax)1.25mm
Surface Area of Cone (Sd)23.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter1.75" x 4.75"
Baffle Cutout Diameter1.5" x 3.75""
Depth1.625"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.03ft³
Sealed F3176Hz
