BUYOUT 1-5/8" x 5-1/4" 12W Speaker 6 Ohm KD0950 02 78G0120-2-K

3 Questions, 5 Answers or
Factory Buyouts
Part #289-2264

BUYOUT 1-5/8" x 5-1/4" 12W Speaker 6 Ohm KD0950 02 78G0120-2-K

Factory Buyouts
Part #289-2264
Model: KD0950 02 78G0120-2-K
3 Questions, 5 Answers or

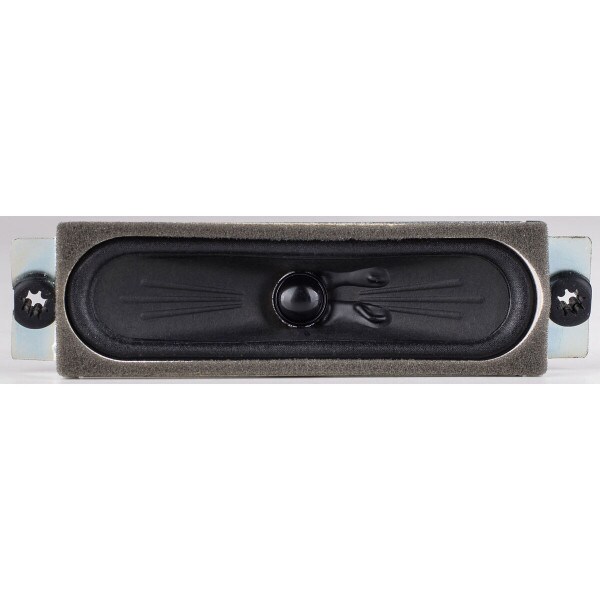

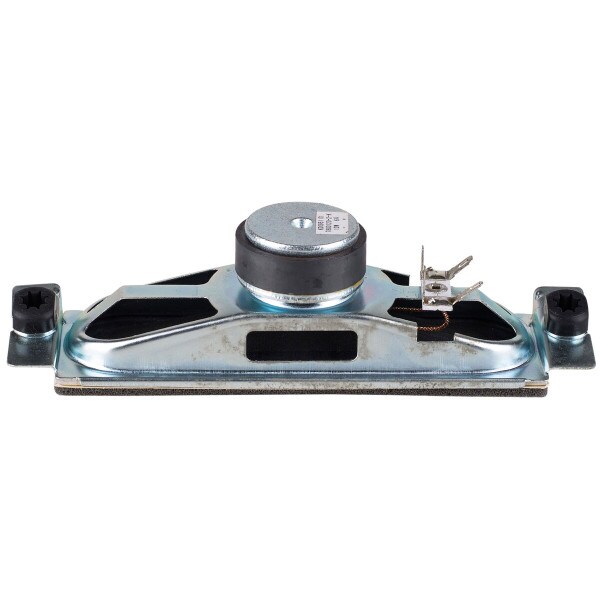

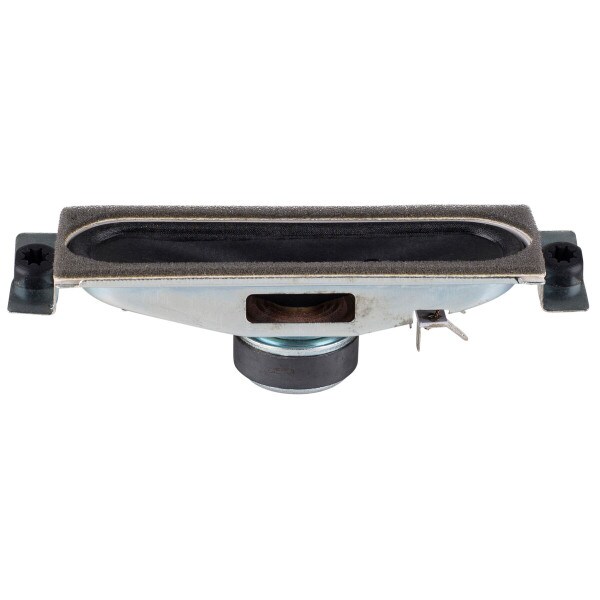

The KD0950 02 78G0120-2-K is an oblong-shaped woofer that was designed for angled rear mounting. This woofer would be ideal for installations lacking height and that require an angle for mounting.
Key Features
  • The oblong shape allows this woofer to be used in height-limited projects
  • Rear-mounting capability allows this woofer to be used in a wide-variety of projects
  • The 6 ohm impedance allows for a wide range of common amplifiers to be used
BUYOUT $1.51
Bulk Pricing
Quantity:Qty: 1-9 $1.51/ea
Quantity:Qty: 10-49 $1.33/ea
Quantity:Qty: 50+$1.20/ea
Order in the next 0 hr 51 min to ship today. Details

1133In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

1-5/8" x 5-1/4" 12W Speaker 6 Ohm KD0950 02 78G0120-2-K

The oblong shape of the KD0950 02 78G0120-2-K allows it to be used in height-limited applications that require angled mounting for DIY projects and models. The frame design makes this woofer best suited for rear-mounting applications. The best use for this speaker would be as a dedicated mid-woofer.

Product Details

BrandFactory Buyouts
ModelKD0950 02 78G0120-2-K
Part Number289-2264
UPC848864048543
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2-1/4 x 6-1/4"
Power Handling (RMS)12 Watts
Power Handling (MAX)24 Watts
Impedance6Ω
Frequency Response130 to 12,000Hz
Sensitivity72.94dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)129.2Hz
DC Resistance (Re)5.291Ω
Voice Coil Inductance (Le)0.147mH
Mechanical Q (Qms)5.013
Electromagnetic Q (Qes)8.228
Total Q (Qts)3.115

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.25 x 1.25"
Baffle Cutout Diameter5.25 x 1.38"
Depth1.5"
# Mounting Holes2
