BUYOUT 1-3/4" x 5" 10W Speaker 8 Ohm BN83-01007A | 59

Factory BuyoutsPart # 289-2220
Model: BN83-01007A
1 Question, 1 Answer or

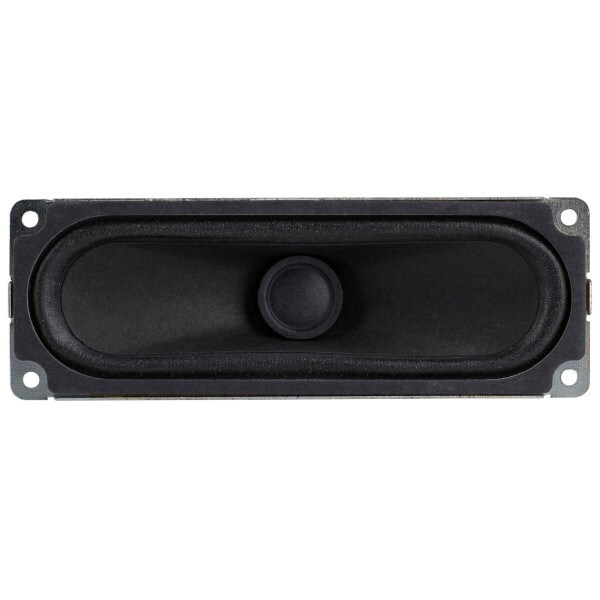

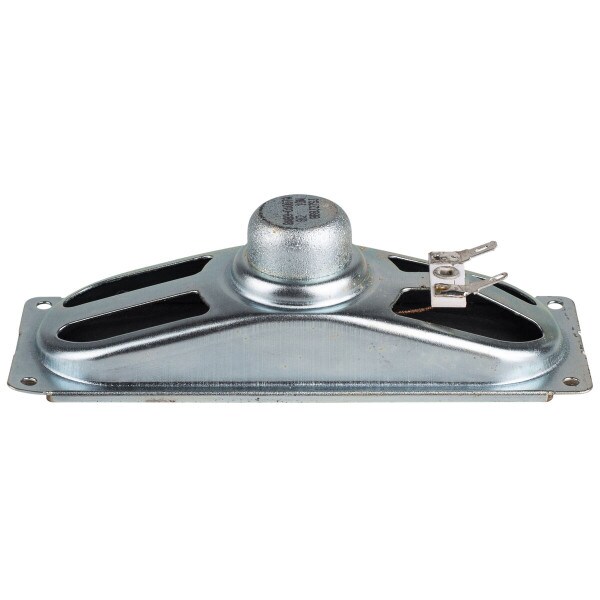

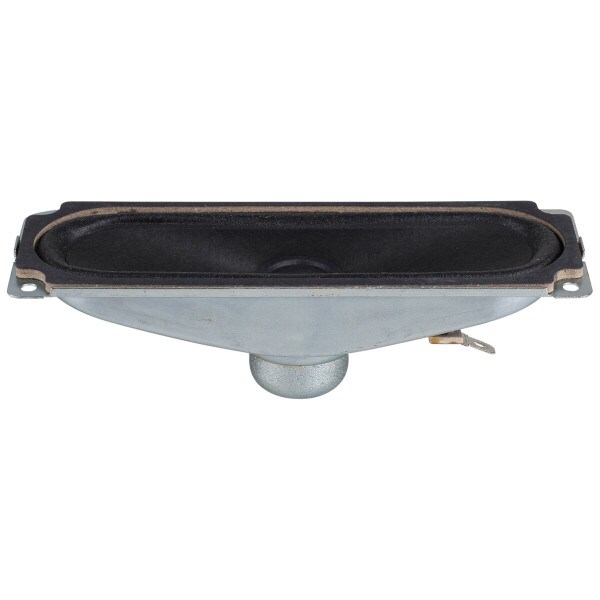

This 8 ohm 1-3/4" x 5" full range driver is a replacement speaker with a paper cone and a fabric surround. This driver will produce a natural frequency response with minimal resonance.

Key Features

  • Gasket on the face for improved rear-mount applications
  • 4 holes on the frame allows for easy mounting
  • Experiment with wild speaker projects thanks to the low cost
BUYOUT $1.82
Bulk Pricing
Quantity:Qty: 1-9 $1.82/ea
Quantity:Qty: 10-49 $1.60/ea
Quantity:Qty: 50+ $1.44/ea
1744 In Stock
Get Notified When Available

We'll send you an email when 1-3/4" x 5" 10W Speaker 8 Ohm BN83-01007A | 59 is back in stock or available for preorder.

Order in the next 5 hr 4 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

1-3/4" x 5" 10W Speaker 8 Ohm BN83-01007A | 59

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-3/4" x 5" speaker, which is part of a massive speaker factory buyout from Brazil. Use this speaker in any low-cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelBN83-01007A
Part Number289-2220
UPC848864048321
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Impedance8Ω
Frequency Response215 to 12,000Hz
Sensitivity74.74dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)214Hz
DC Resistance (Re)7.128Ω
Voice Coil Inductance (Le)0.1514mH
Mechanical Q (Qms)6.777
Electromagnetic Q (Qes)4.624
Total Q (Qts)2.749
Compliance Equivalent Volume (Vas)0.03209ft³

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.15 x 1.77"
Baffle Cutout Diameter4.78 x 154"
Depth1.29"
# Mounting Holes4
