  • 1/2" x 7/8" 1W Speaker 8 Ohm ATI1016

CLEARANCE 1/2" x 7/8" 1W Speaker 8 Ohm ATI1016

Factory Buyouts
Part #289-2014

CLEARANCE 1/2" x 7/8" 1W Speaker 8 Ohm ATI1016

Factory Buyouts
Part #289-2014
Model: ATI1016
This driver is a unique solution to applications requiring audio in a small space.
Key Features
  • Compact size and shape allow for a wide variety of installations
  • The 8-ohm impedance allows for a wide range of common amplifiers to be used
CLEARANCE $0.98
Bulk Pricing
Quantity:Qty: 1-9 $0.98/ea
Quantity:Qty: 10-49 $0.75/ea
Quantity:Qty: 50-499 $0.64/ea
Quantity:Qty: 500+$0.38/ea
Order in the next 0 hr 37 min to ship today. Details

3518In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

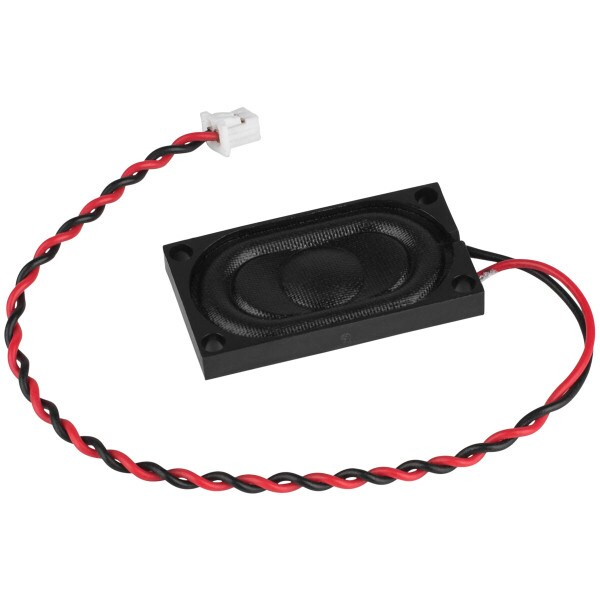

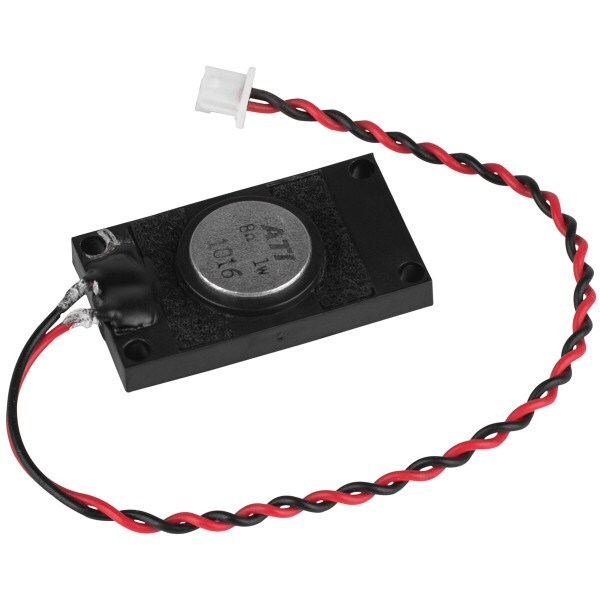

1/2" x 7/8" 1W Speaker 8 Ohm ATI1016

The compact size and shallow depth of the ATi1016 make it ideal for project requiring audio with limited space. The ideal application for this driver would be for models or DIY projects.

Product Details

BrandFactory Buyouts
ModelATI1016
Part Number289-2014
UPC848864047294
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter< 1"
Power Handling (RMS)1 Watts
Impedance8Ω
Frequency Response1,200 to 15,000Hz

Thiele-Small Parameters

Resonant Frequency (Fs)1171Hz
DC Resistance (Re)7.744Ω
Voice Coil Inductance (Le)0.02893mH
Mechanical Q (Qms)3.38
Electromagnetic Q (Qes)12
Total Q (Qts)2.637

Materials of Construction

Surround MaterialCloth

Mounting Information

Overall Outside Diameter0.98" x 0.55"
Depth0.16"
# Mounting Holes4
