BUYOUT 05-18385-1 3" Sealed-Back Midrange Speaker 4 Ohm

Factory Buyouts
Part #299-4320

BUYOUT 05-18385-1 3" Sealed-Back Midrange Speaker 4 Ohm

Factory Buyouts
Part #299-4320
Model: 05-18385-1

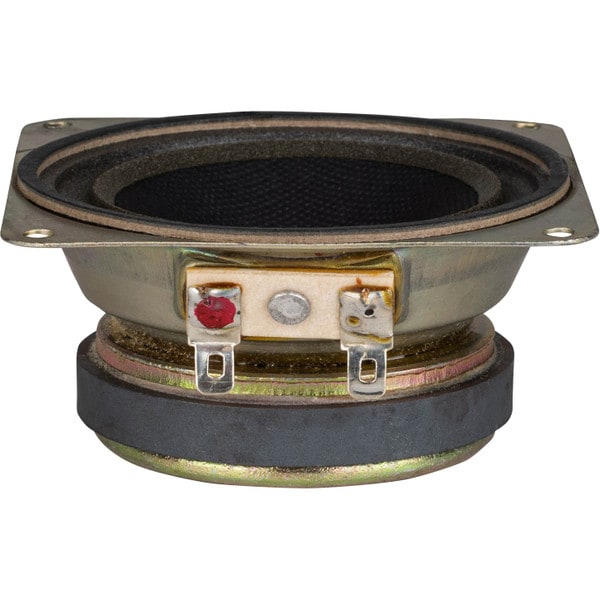

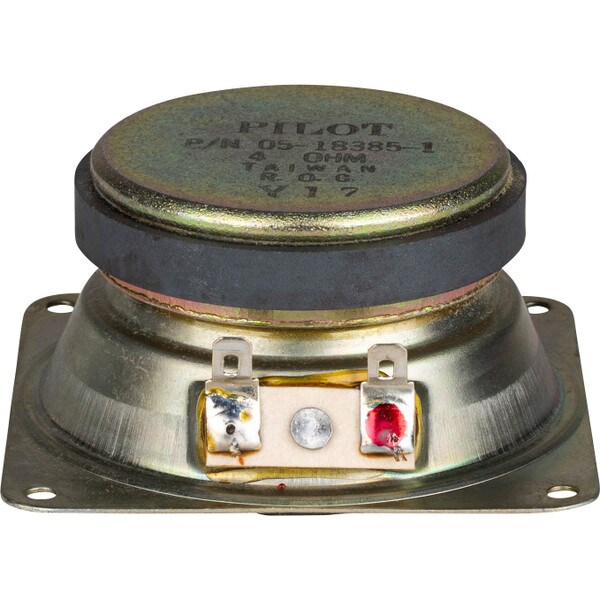

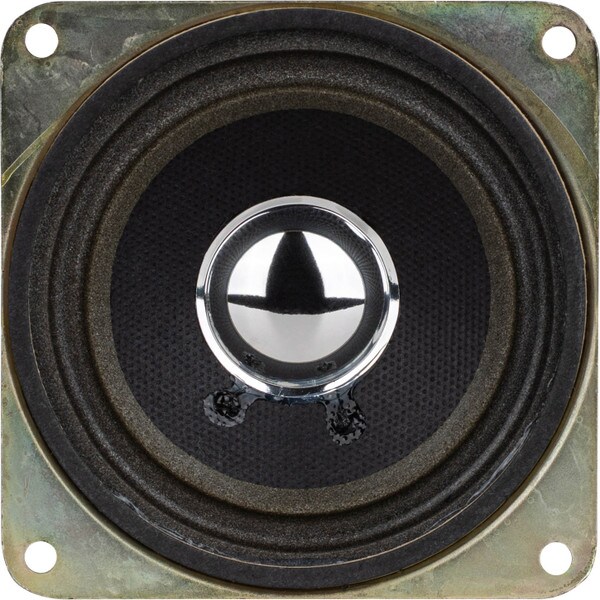

The 05-18385-1 3" Sealed-Back Midrange Speaker has a paper cone, inverted foam surround and a sealed square frame for making installation simple.

Key Features
  • 3" Sealed square frame for simple installation - no separate chambers required
  • Chrome dust cap for a throw-back style
  • Inverted foam surround helps eliminate diffraction issues
BUYOUT $3.88
Bulk Pricing
Quantity:Qty: 1-9 $3.88/ea
Quantity:Qty: 10-19 $3.48/ea
Quantity:Qty: 20+$2.88/ea
Order in the next 0 hr 54 min to ship today. Details

32In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

05-18385-1 3" Sealed-Back Midrange Speaker 4 Ohm

The 05-18385-1 3" Sealed-Back Midrange Speaker has a paper cone, inverted foam surround and a sealed square frame for making installation simple.

Product Details

BrandFactory Buyouts
Model05-18385-1
Part Number299-4320
UPC848864074047
Unit of MeasureEach
Weight0.65

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.75
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response600 to 12,000Hz
Sensitivity88dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)595.2Hz
DC Resistance (Re)3.861Ω
Mechanical Q (Qms)5.663
Electromagnetic Q (Qes)6.975
Total Q (Qts)3.125
Surface Area of Cone (Sd)55.42cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.0625"
Baffle Cutout Diameter3"
Depth1.25"
# Mounting Holes4
