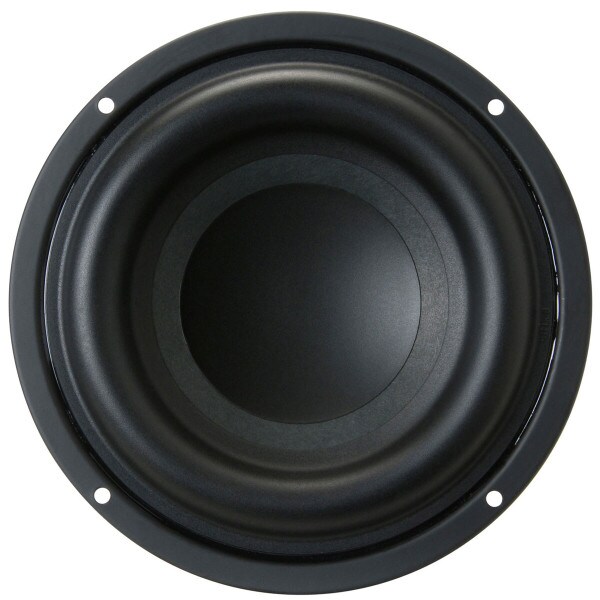

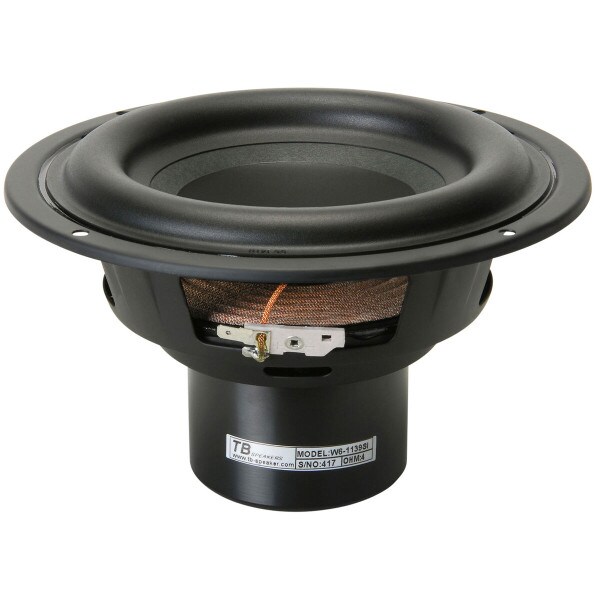

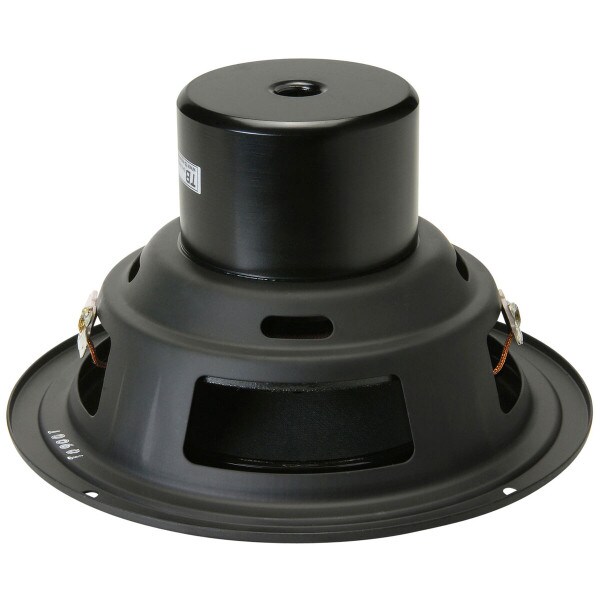

Amazing bass in a compact package! This one-of-a-kind 6-1/2" subwoofer has an impressive 13 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/2" 4-layer voice coil ensure impressive bass performance and high power handling. Venting the pole piece and spider allows good airflow around the coil, improving heat dissipation and reducing power compression. The compact neodymium motor structure saves valuable enclosure space while also allowing closer-than-normal placement to CRTs. The ultimate multimedia subwoofer driver!
Product Details | |
|---|---|
| Brand | Tang Band |
| Model | W6-1139SI |
| Part Number | 264-832 |
| UPC | 844632019333 |
| Unit of Measure | Each |
| Weight | 3.95 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6-1/2" |
| Power Handling (RMS) | 50 Watts |
| Power Handling (MAX) | 100 Watts |
| Impedance | 4Ω |
| Frequency Response | 38 to 800Hz |
| Sensitivity | 83dB 2.83V/1m |
| Voice Coil Diameter | 1.52" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 38Hz |
| DC Resistance (Re) | 3.6Ω |
| Voice Coil Inductance (Le) | 0.34mH |
| Mechanical Q (Qms) | 2.65 |
| Electromagnetic Q (Qes) | 0.47 |
| Total Q (Qts) | 0.4 |
| Compliance Equivalent Volume (Vas) | 0.42ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.42mm/N |
| BL Product (BL) | 8.67T·m |
| Diaphragm Mass Inc. Airload (Mms) | 39.91g |
| Maximum Linear Excursion (Xmax) | 13mm |
| Surface Area of Cone (Sd) | 140cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket / Frame Material | Steel |
| Magnet Material | Neodymium |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 6.95" |
| Baffle Cutout Diameter | 5.57" |
| Depth | 4.29" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.2ft³ |
| Sealed F3 | 75.4Hz |
| Vented Volume | 0.4ft³ |
| Vented F3 | 38Hz |
