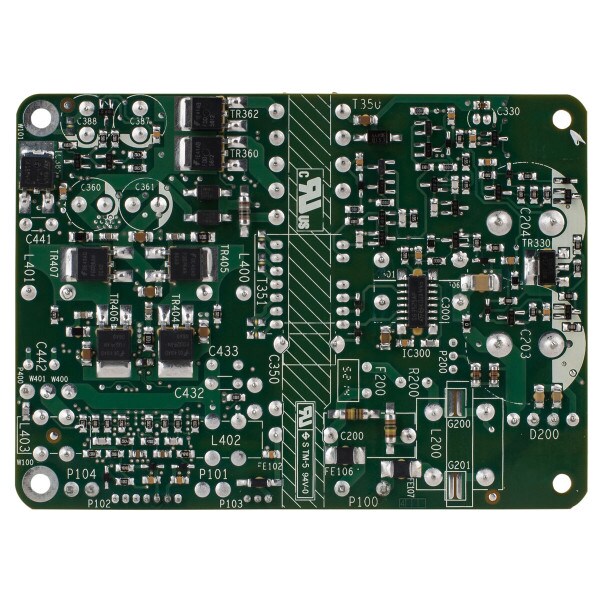

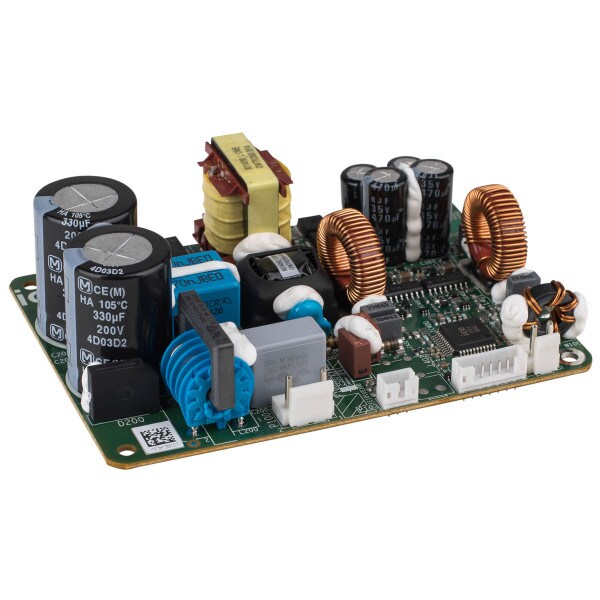

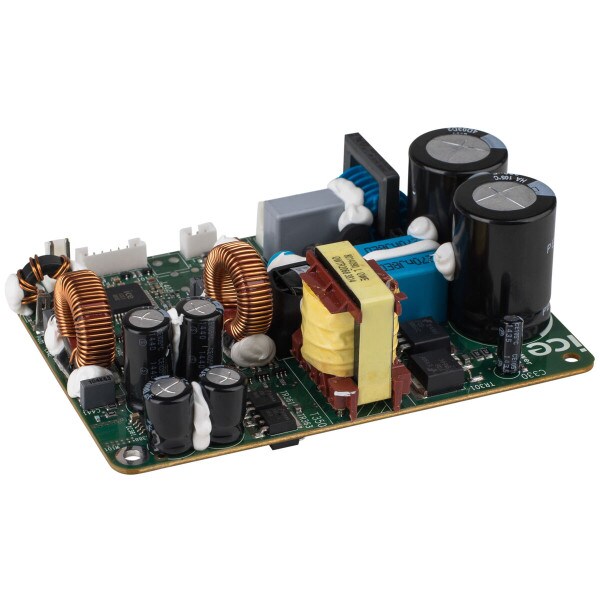

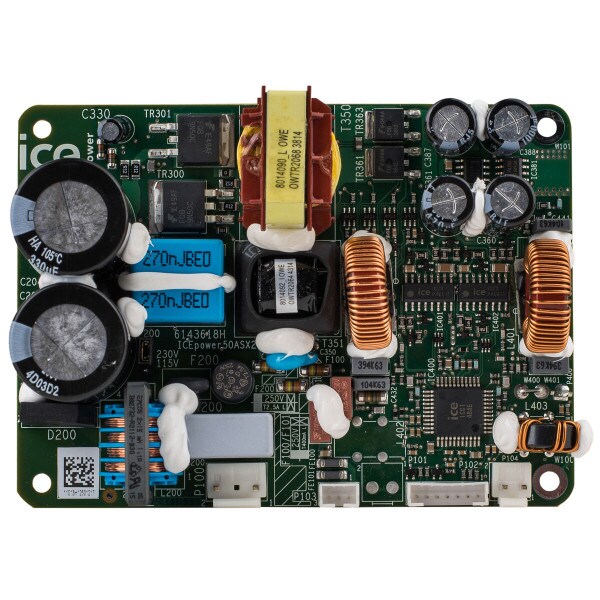

ICEpower 50ASX2BTL Class D Audio Amplifier with Power Supply Module 1 x 170W

ICEpowerPart # 326-214
Model: 50ASX2BTL
The ICEpower 50ASX2BTL combines a highly efficient resonant gearbox power supply with a 1 x 170W audiophile class D amplifier. This amp board is perfect for powered subwoofers or single channel full range speaker designs created by DIYs, and OEMs for home theater or other audio projects.

Key Features

  • AC plug-to-speaker amplification audio solution offering flexible 1 x 170W output all-in-one mini PC board
  • Built-in circuits for shorts, over-current, and thermal protection
  • No noisy fan needed
  • High current output stages, designed to comfortably drive any speaker load from 3 ohms and up
  • Perfect size and wattage for creatively designed small active subwoofer applications
  • A power supply with selectable AC voltage for worldwide versatility
Your Price: $129.98
+ FREE SHIPPING
Bulk Pricing
In Stock
Order in the next 11 hr 9 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 50ASX2BTL Class D Audio Amplifier with Power Supply Module 1 x 170W

The 50ASX2BTL sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEpower technological advances. Its mini size foot print, 1 x 170W, and fanless design creates limitless possibilities for small active subwoofer creations that pack-a-punch. With the optional wiring harness bundle (sold separately) other possible creations are a powered center channel, or Bluetooth single channel speaker by adding a Bluetooth receiver board (sold separately). The rugged construction keeps the music playing for years even when moving from place-to-place. There are endless possibilities using this compact, combination power supply 1 x 170W amp board for your next audio project.

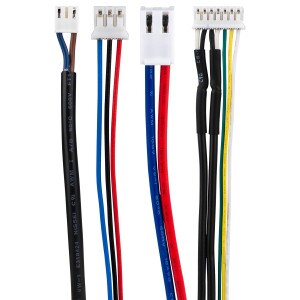

Note:Requires the 326-152 ICEpower Amplifier Module 50ASX2BTL Wiring Harness Kitfor full stand-alone functionality (sold separately).

ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.

Note: Make sure the jumper is set to 115V for use in the USA, or the correct setting for other countries. Audio input needs to be fully balanced.

Specifications: • Wattage output: 1 x 150W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz all loads • Dynamic range: 125 dBA • Total efficiency: 81% @ 170W 4 ohm • Unregulated auxiliary power supply: +/-25 V @ 200mA • Selectable input voltage: 115/230 VAC 50/60 Hz • Maximum output current limit: 20A • Dimensions: 4.34" W x 3.15" D x 1.32" H.

Product Details

BrandICEpower
Model50ASX2BTL
Part Number326-214
UPC848864053851
Unit of MeasureEach
Weight0.75

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)51 - 100 Watts
