Gemini UHF-04HL 500-950 MHz Four Channel UHF Wireless Lavalier System

GeminiPart # 235-124
Model: UHF-04HL
The Gemini UHF-04HL is a lightweight, noise-free, rugged four channel wireless microphone system. With a snug and comfortable fit, it is the ultimate wireless solution for fitness instructors, musicians, active performers, or anyone who needs untethered movement on stage.

Key Features

  • State-Of-The-Art UHF four channel receiver with frequency selectivity between 500-950MHz
  • Features a full-range volume rotary controls that allows the ultimate level of control for each microphone
  • Dynamic operation range of 100 feet
Your Price: $169.95
+ FREE SHIPPING
MSRP: $289.95
Save $120.00 (41%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Gemini UHF-04HL 500-950 MHz Four Channel UHF Wireless Lavalier System is back in stock or available for preorder.

Order in the next 6 hr 47 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Gemini UHF-04HL 500-950 MHz Four Channel UHF Wireless Lavalier System

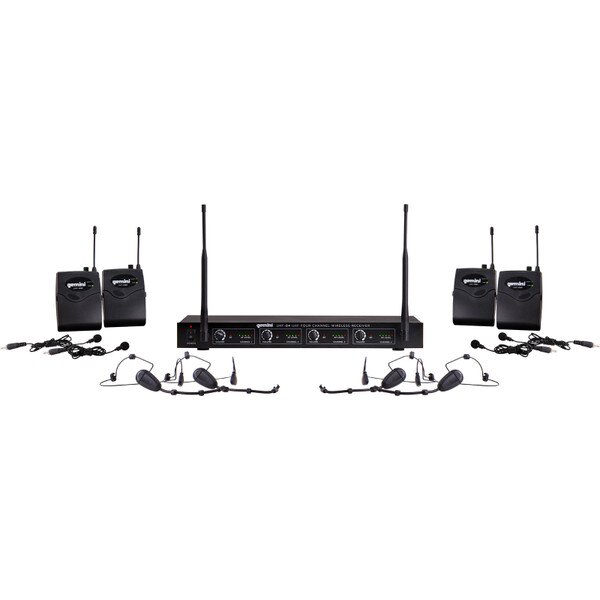

The four channel sibling of the UHF-01HL, the UHF-04HL offers high-quality voice reproduction with incredible clarity and reliability, at Gemini’s all-time low-price point that can’t be beat. The UHF-04HL Wireless System Features A State-Of-The-Art VHF dual channel receiver with selectable frequency options from 500-950 MHz to give you crystal clear sound that will carry across any room. System includes a four channel receiver and four lavalier microphones.

Transmitter Specifications
• Frequency Range: 500-950 MHz
• Frequency Stability: 10ppm
• RF Output: <10mW
• Modulation: FM
• Max Deviation: +75kHz
• Power Supply: 3V (2 AA batteries)
• Current Consumption: 100mA

Receiver Specifications
• Frequency Range: 500-950MHz
• Frequency Stability: <0.005%
• Sensitivity: -100dBm
• Mirror Image Rejection: >45 dB
• Audio Output Level: 150mV RMS
• S/N Ratio: >95dB
• Distortion: <0.5%
• Audio Output Level: <1V (10kHz)
• Power Supply: DC12V 200mA

Product Details

BrandGemini
ModelUHF-04HL
Part Number235-124
UPC747705003089
Unit of MeasureEach
Weight7.05

Product Specifications

Frequency BandUHF
