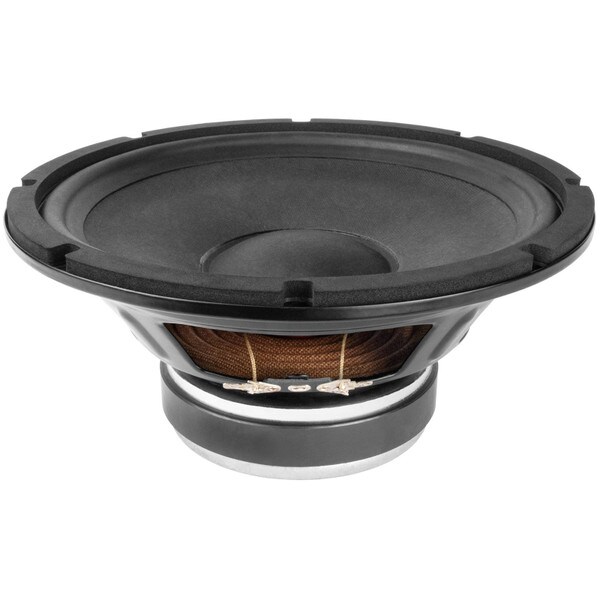

FaitalPRO 10FE330 10" Professional Woofer 8 Ohm

FaitalPROPart # 294-1340
Model: 10FE330
2 Questions, 2 Answers or

The FaitalPRO 10FE330 10" Professional Woofer is a great choice when you need smooth response, high sensitivity and incredible bass response in average size ported or sealed enclosures.

Key Features

  • Glass fiber reinforced paper cone for smooth natural response
  • High 92 dB sensitivity for incredible output potential
  • Half roll rubber surround for clean linear excursion
  • Above average 8.32mm Xmax for impactful low-end
Your Price: $140.00
+ FREE SHIPPING
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 10FE330 10" Professional Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 10FE330 10" Professional Woofer 8 Ohm

The FaitalPRO 10FE330 10" Professional Woofer is a great choice when you need smooth response, high sensitivity and incredible bass response in average size ported or sealed enclosures.

Featuring a glass fiber reinforced paper cone, half-roll rubber surround and 250W program power handling, this woofer is ready to rock in a number of different applications. An excellent choice in a studio, small venue or even home audio environment.

Product Details

BrandFaitalPRO
Model10FE330
Part Number294-1340
UPC848864074719
Unit of MeasureEach
Weight8.85

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance
Frequency Response35 to 4000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter2.05"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)6.7
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)2.56ft³
Mechanical Compliance of Suspension (Cms)0.36mm/N
BL Product (BL)12.6T·m
Diaphragm Mass Inc. Airload (Mms)58.2g
Maximum Linear Excursion (Xmax)8.32mm
Surface Area of Cone (Sd)382cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.24"
Baffle Cutout Diameter9.17"
Depth4.33"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume73.72ft³
Sealed F30.685Hz
Vented Volume2.025ft³
Vented F338.8Hz
