  • Aurum Cantus AC-130MKII 5-1/4" Carbon Fiber/Kevlar Woofer

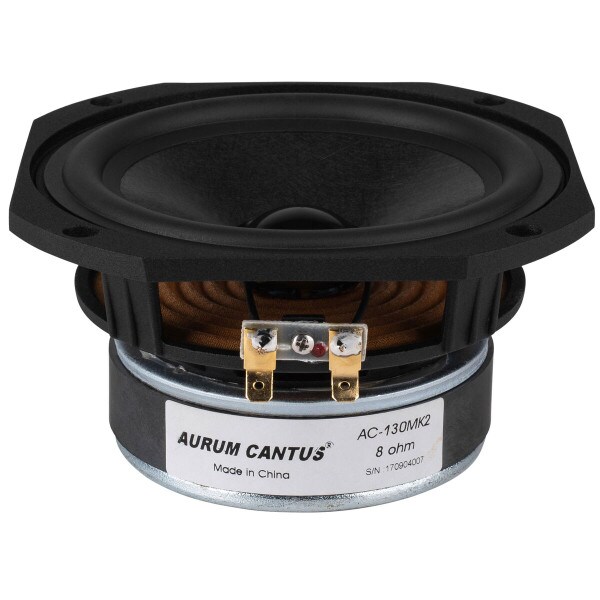

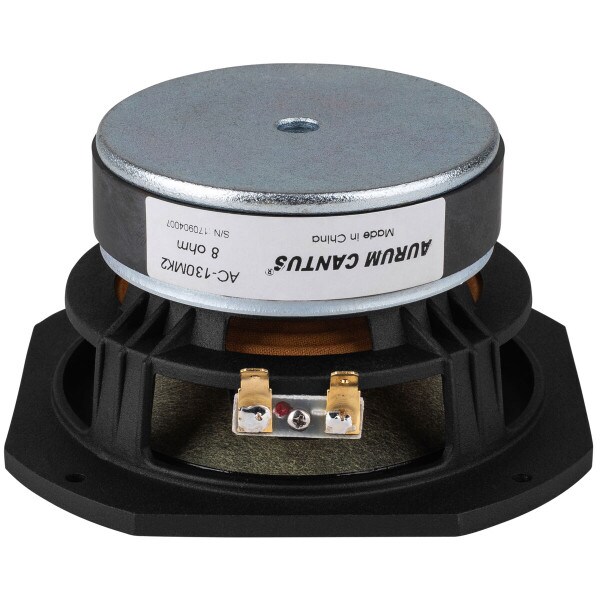

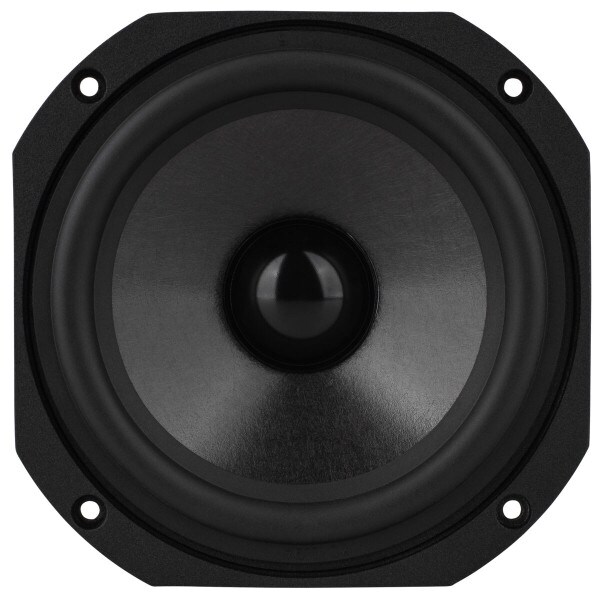

Aurum Cantus AC-130MKII 5-1/4" Carbon Fiber/Kevlar Woofer

Aurum CantusPart # 296-404
Model: AC-130MK2

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
The AC-130MKII utilizes an extremely stiff cone made of carbon fiber and Kevlar for the maximum clarity and detail. A high compliance design allows this woofer to produce clean bass in mid-sized enclosures.

Key Features

  • Non-woven carbon fiber/kevlar sandwich cone
  • Very clean midrange and quick transient response
  • Long-throw design and healthy Xmax for strong bass
Your Price: $99.98
+ FREE SHIPPING
MSRP: $129.99
Save $30.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $99.98/ea
Quantity:Qty: 4+ $94.76/ea
In Stock
Get Notified When Available

We'll send you an email when Aurum Cantus AC-130MKII 5-1/4" Carbon Fiber/Kevlar Woofer is back in stock or available for preorder.

Order in the next 4 hr 19 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Aurum Cantus AC-130MKII 5-1/4" Carbon Fiber/Kevlar Woofer

Aurum Cantus midwoofers feature high-performance cone materials, long-excursion designs, and high quality construction. The AC-130MKII utilizes an extremely stiff cone made of carbon fiber and Kevlar for the maximum clarity and detail. A high compliance design allows this woofer to produce clean bass in mid-sized enclosures.

Product Details

BrandAurum Cantus
ModelAC-130MK2
Part Number296-404
UPC844632003288
Unit of MeasureEach
Weight3.32

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response35 to 7,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)7Ω
Voice Coil Inductance (Le)0.35mH
Mechanical Q (Qms)3.02
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.95ft³
Mechanical Compliance of Suspension (Cms)3.06mm/N
BL Product (BL)5.63T·m
Diaphragm Mass Inc. Airload (Mms)9g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialCarbon Fiber / Kevlar
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.51"
Baffle Cutout Diameter4.875"
Depth2.625"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F392Hz
Vented Volume0.3ft³
Vented F348Hz
