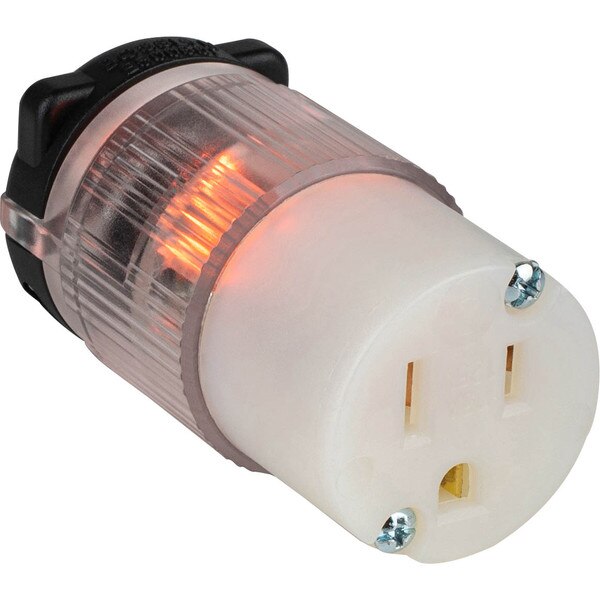

3-Prong NEMA 5-15R connector AC Socket with Built-In Light

Parts ExpressPart # 110-304
1 Question, 1 Answer or
Replace old worn-out AC female socket or start making your own extension cords with this lighted NEMA 5-15R receptacles. Light indicates power flowing to your AC appliance, power tool or audio/video equipment.


Key Features

  • Easy no solder or crimping assembly
  • Ideal for making or replacing AC receptacles on extension cords
  • Amber neon light indicates live AC power flowing to your AC appliance, power tool or audio/video equipment
  • Rear cable entry clamp automatically adjusts to secure 18-12 AWG cable
  • Rugged nylon body and clear polycarbonate shell for long lasing performance
  • Standard NEMA 5-15R receptacle for perfect coupling with NEMA 5-15P AC plugs
  • cUL listed for safety
Your Price: $12.98
MSRP: $15.99
Save $3.01 (19%)
Bulk Pricing
Quantity:Qty: 1-9 $12.98/ea
Quantity:Qty: 10+ $12.33/ea
461 In Stock
Get Notified When Available

We'll send you an email when 3-Prong NEMA 5-15R connector AC Socket with Built-In Light is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

3-Prong NEMA 5-15R connector AC Socket with Built-In Light

Use this lighted NEMA 5-15R connector to replace AC receptacles on extension cords or it’s a start to making your own whatever length you want. Never have to worry if your extension cord is good, or the AC outlet you’re plugging into is hot since the light in the receptacle shows you have power. There’s nothing more frustrating than thinking your equipment has a problem, and the last thing you check is your extension cord or the wall outlet. If you make your own lighted extension cord you’ll save time and money knowing that all you have to do is reset a breaker or fix a loose wire.

The connector’s color-coded screw terminals make it easy to install and the cable entry clamp keeps it all securely in place. Make sure the first thing you do is slide the outer clear shell onto the cable. Strip off 1-1/4" of the jacket. Then strip the individual conductors 1/5", insert the wire into the correct terminals, and screw them down. The bronze screw is for the black hot wire, the silver-colored screw is for the white neutral wire and the green screw is for the ground wire. Screw the AC plug into the clear outer shell and use the black screw down clamps to secure the outer jacket into the shell. The clamp’s design holds 18 to 12 AWG 3-conductor round AC cable.

Specifications: • Voltage: 125 VAC • Current: 15A • Sold per: each • Terminals: Brass • Termination style: Clamping screw • Conductor entry hole: 0.20" (5 mm) • Entry hole without clamp: 0.67" (17 mm) • Entry hole with clamp: 0.16"-0.54" (4 -13.7 mm) • Dimensions: 2.77" L x 1.5" Dia. (70 x 38 mm) with cable clamp.

Product Details

BrandParts Express
Part Number110-304
UPC848864069876
Unit of MeasureEach
Weight0.15

Product Specifications

ConfigurationNEMA L5-15
Current Rating15A
Power Connector TypeCable Mount
