Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil

Brand:| Model: UM10-22
Product Video
Overview
Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.
Highlights
  • Dual 2 ohm, 2-layer copper voice coils
  • Large vented pole piece and under-spider venting
  • 500 watts RMS power handling
  • Black anodized aluminum former and black pole improves heat dissipation
  • Thick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiber
  • Tall-boy rubber surround for extra-long linear excursion without reducing cone surface area
  • Dual linear stiffness spiders limit distortion and rocking modes
Part #
295-510
Weight: 22.35 lbs.
IN STOCK
Regular Price$159.60
Special Price
$149.00
Part # 295-510
Qty:  EA
Available Payment Methods

Product Details

Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil

The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.

To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.

A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

A knock-down 1.25 cubic foot subwoofer cabinet built specifically for the 10" Ultimax is available here. Save 50% off the price of the cabinet when you buy the cabinet and Ultimax subwoofer together in this package.

Cabinet recommendations:
• Sealed 0.63 cubic ft. (net internal), f3 of 45 Hz with a 0.707 Qtc alignment
• Vented 1.75 cubic ft. (net internal, not including driver or port volume) tuned to 25 Hz with a 10" wide by 1" high slot port that is 24" long, which yields an f3 of 23 Hz

Note: All parameters derived with voice coils wired in series.

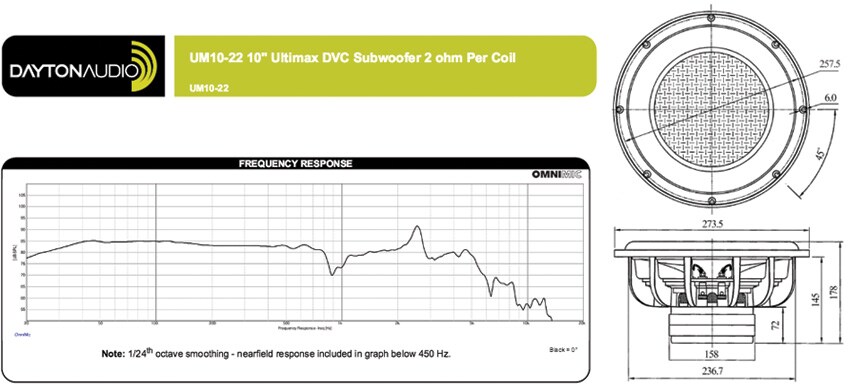

Product Specifications
  • Nominal Diameter10"
  • Power Handling (RMS)500 Watts
  • Power Handling (max)1000 Watts
  • Impedance2+2 ohms
  • Frequency Response25 to 1,500 Hz
  • Sensitivity83.4 dB 1W/1m
  • Voice Coil Diameter2.5"
Thiele-Small Parameters
  • Resonant Frequency (Fs)26.2 Hz
  • DC Resistance (Re)3.3 ohms
  • Voice Coil Inductance (Le)1.27 mH
  • Mechanical Q (Qms)3.03
  • Electromagnetic Q (Qes)0.54
  • Total Q (Qts)0.46
  • Compliance Equivalent Volume (Vas)1.24 ft.³
  • Mechanical Compliance of Suspension (Cms)0.23 mm/N
  • BL Product (BL)12.7 Tm
  • Diaphragm Mass Inc. Airload (Mms)160.4g
  • Maximum Linear Excursion (Xmax)19 mm
  • Surface Area of Cone (Sd)327.8 cm²
Materials of Construction
  • Cone MaterialNomex / Glass Fiber
  • Surround MaterialRubber
  • Voice Coil Wire MaterialCopper
  • Voice Coil FormerAluminum
  • Basket / Frame MaterialCast Aluminum
  • Magnet MaterialFerrite
Mounting Information
  • Overall Outside Diameter10.77"
  • Baffle Cutout Diameter9.32"
  • Depth5.7"
  • Bolt Circle Diameter10.14"
  • # Mounting Holes8
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume0.585 ft.³
  • Sealed F345 Hz
  • Vented Volume1.55 ft.³
  • Vented F322 Hz
Optimum Cabinet Size *
  • Sealed Volume0.585 ft.³
  • Sealed F345 Hz
  • Vented Volume1.55 ft.³
  • Vented F322 Hz
Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil
  • BrandDayton Audio
  • ModelUM10-22
  • Part Number295-510
  • UPC844632099243
  • Product CategorySubwoofer Drivers
  • Unit of MeasureEA
  • Product Rating
    (14 Reviews)
  • Weight22.35 lbs.
  • California Prop 65

    Warning: California residents only. Please note per Proposition 65 that this product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
